GPS Trailer
Trackers

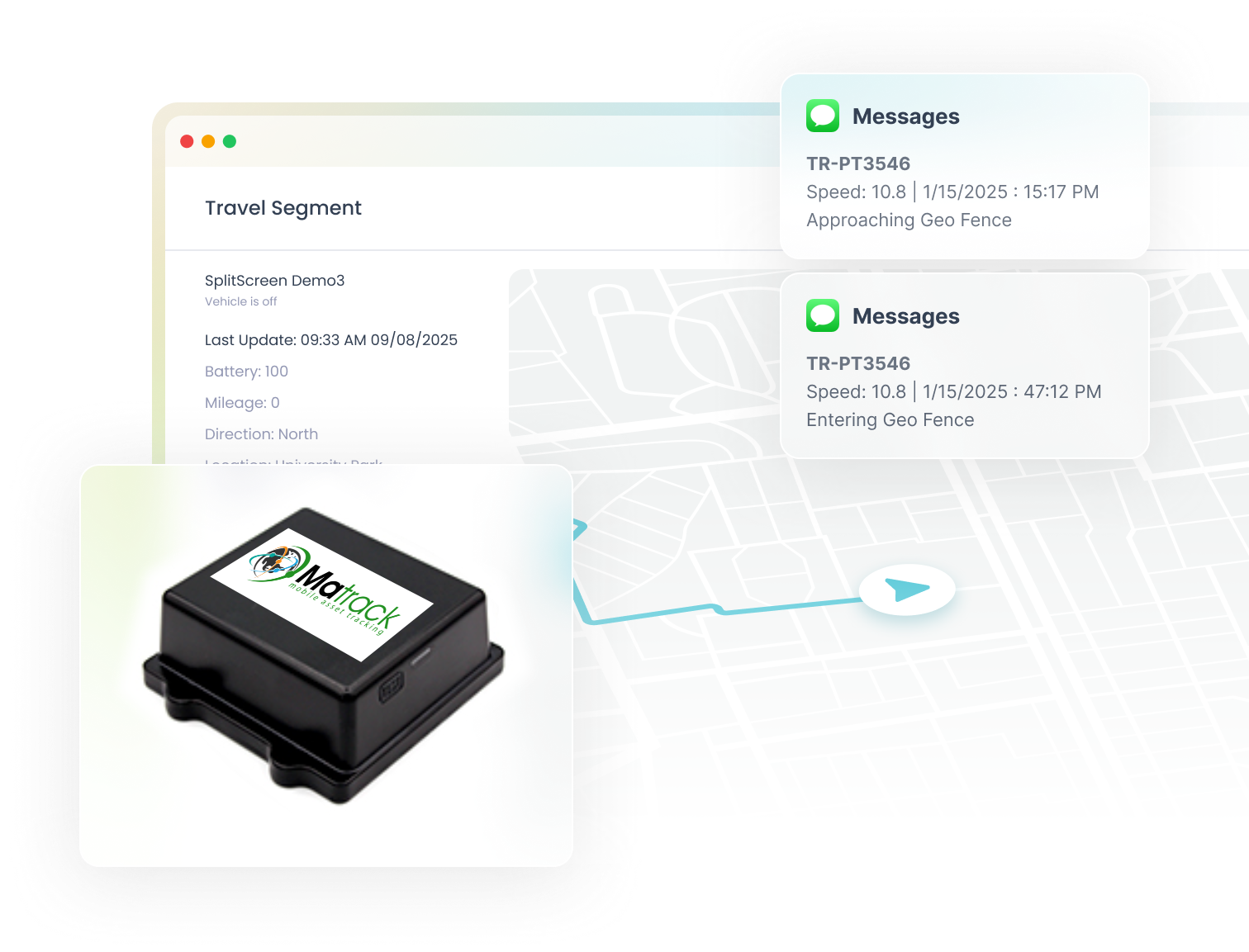

Introducing our new asset tracker, the best and most convenient tool for preventing unauthorized use of your assets. This asset tracker is perfect for many asset types, including such as detachable trailers, vintage autos, boats, construction equipment and RVs. It can survive the most extreme conditions. Its casing and structure make it both water-resistant and weather-proof.

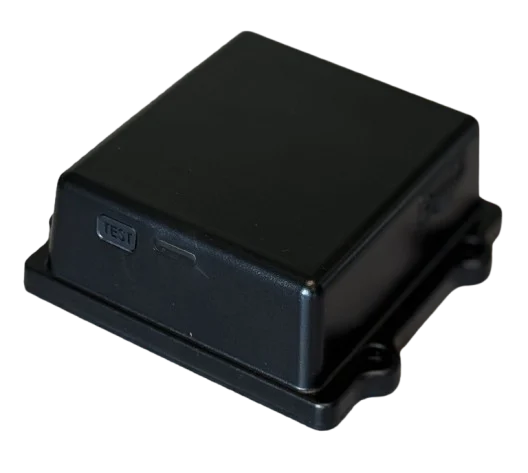

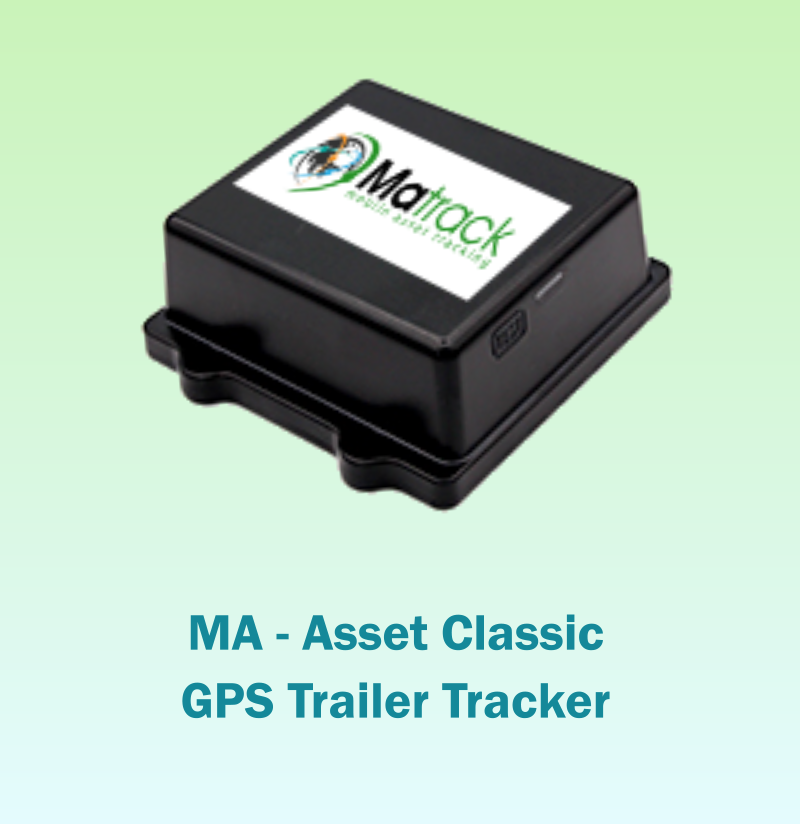

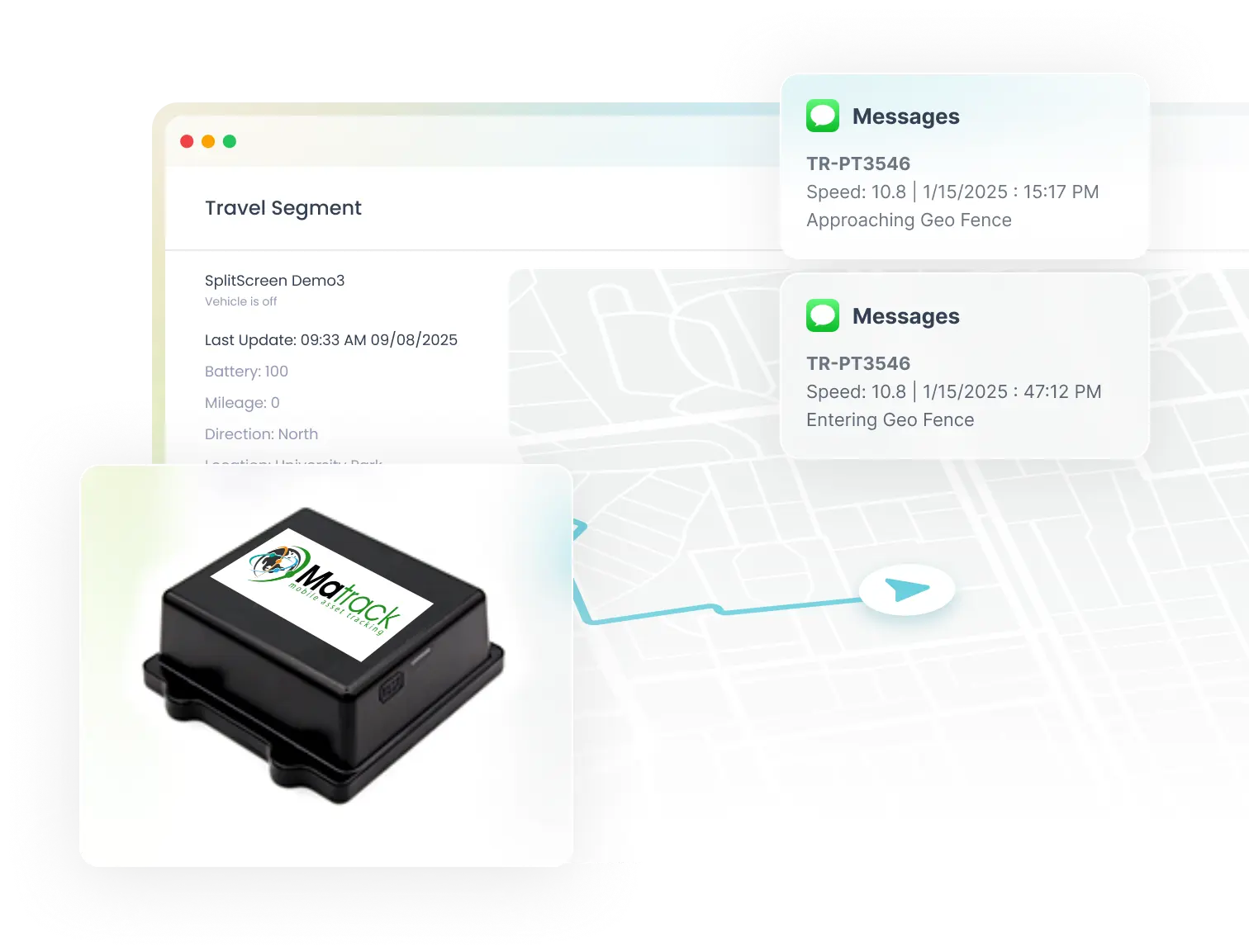

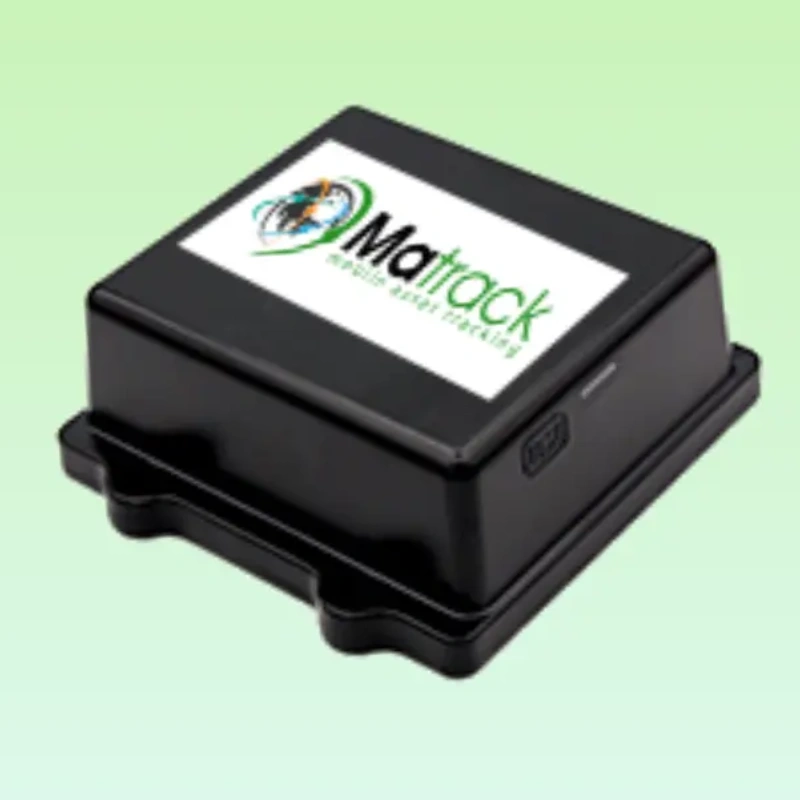

The MA-Asset Classic is considered to be our standard in the world of asset tracking systems, simple sturdy and with enduring battery power, this piece of equipment practically sells itself.

• Dimension : 7.3cm X 6.1cm X 4.3cm (2.87in X 2.4in X 1.69in)
• Weight : 204g (7.2oz)
• Battery : 3.6V Lithium, 13Ah
• Current consumption : ~10.4mA per day for reporting every 12 hours
• Supported bands : 4G LTE: 12(700MHz), 5(850MHz), 4(1700MHz) and 2(1900MHz) 3G UMTS: 5(850MHz), 2(1900MHz)
• GPS : Accuracy: 2.5m, Coldstart: 29s, Hotstart: 1s
• Navigation : Update rate: 18Hz (Max.), Sensitivity: -166 dBm
• Operational limits : Altitude: 50,000m (164042ft), Velocity: 500m/s
• Operating temperature : -25OC to +65OC (-13OF to 149 OF)
• Storage temperature : -40OC to +85OC (-40 OF to 185 OF)

• The device needs to have as much access to the open as possible to retain a connection to GPS satellites
• Device cannot have full metal enclosures.
• Do NOT place the device in the glovebox, trunk, middle of the undercarriage, in wheel well, inside metal bumper or any enclosed space.
• We suggest placement of the tracker under or behind the driver or passenger seat or underneath the vehicle as close to the edge as possible.

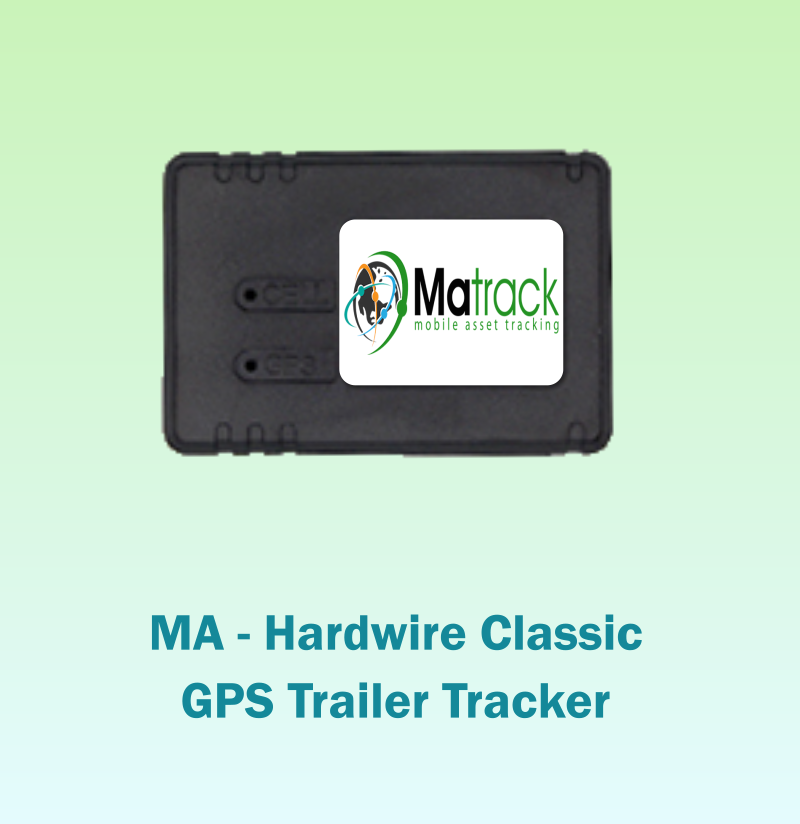

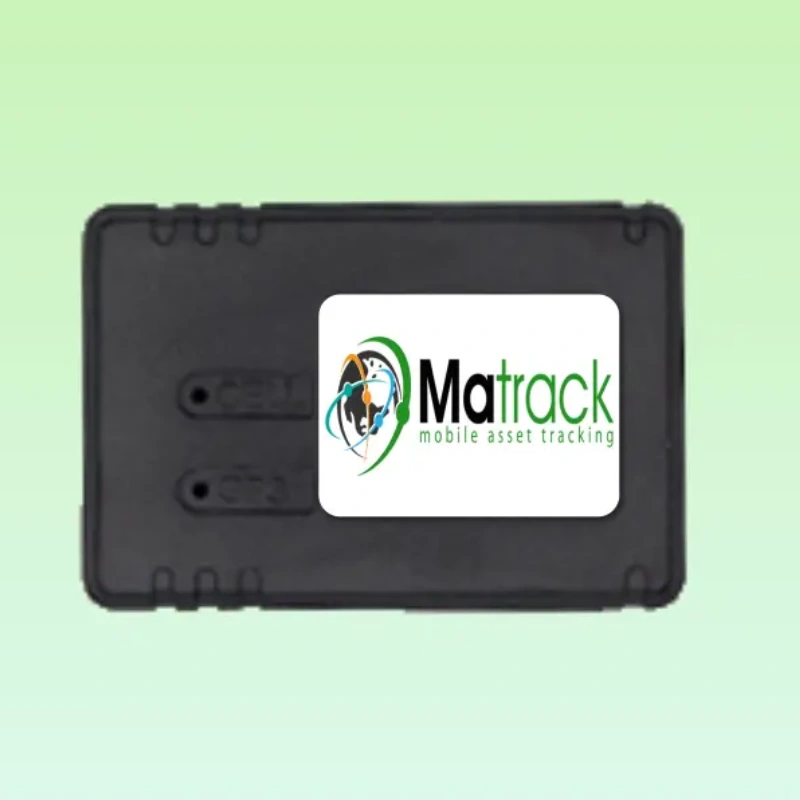

A discreet, tamper resistant device specialized for Fleets and Transport Services. The MA Hardwired Classic GPS tracking device sets the standard for vehicle monitoring and fleet management. With its compact design, direct battery connection, and expansive feature package, this real time tracker can be covertly wired in the vehicle.

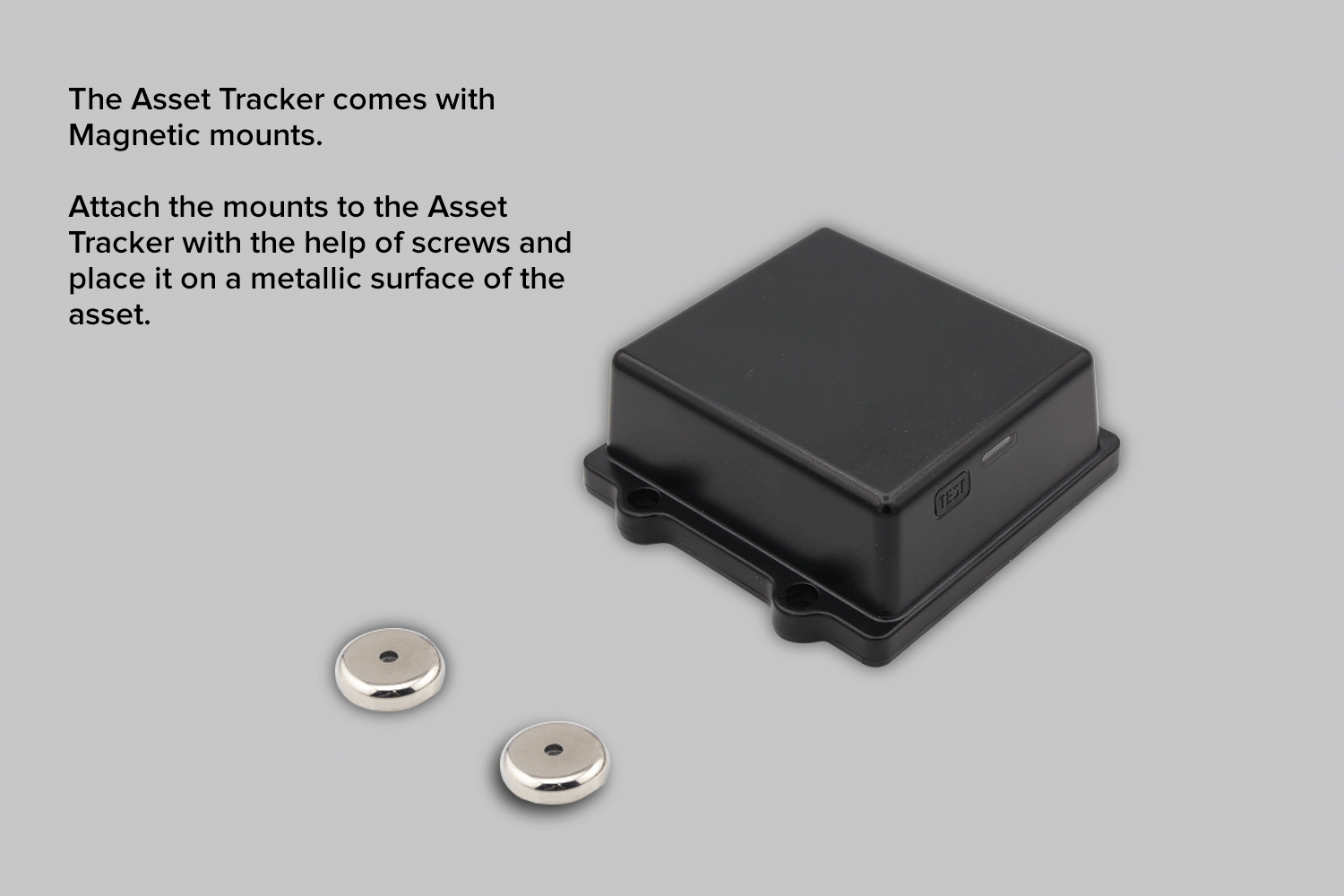

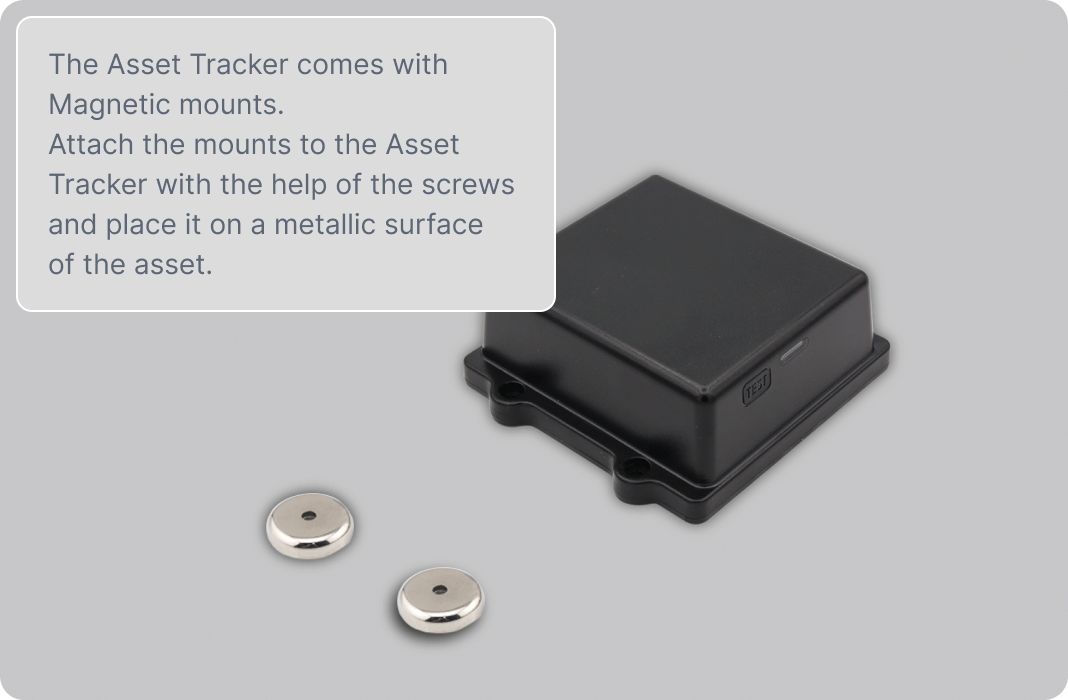

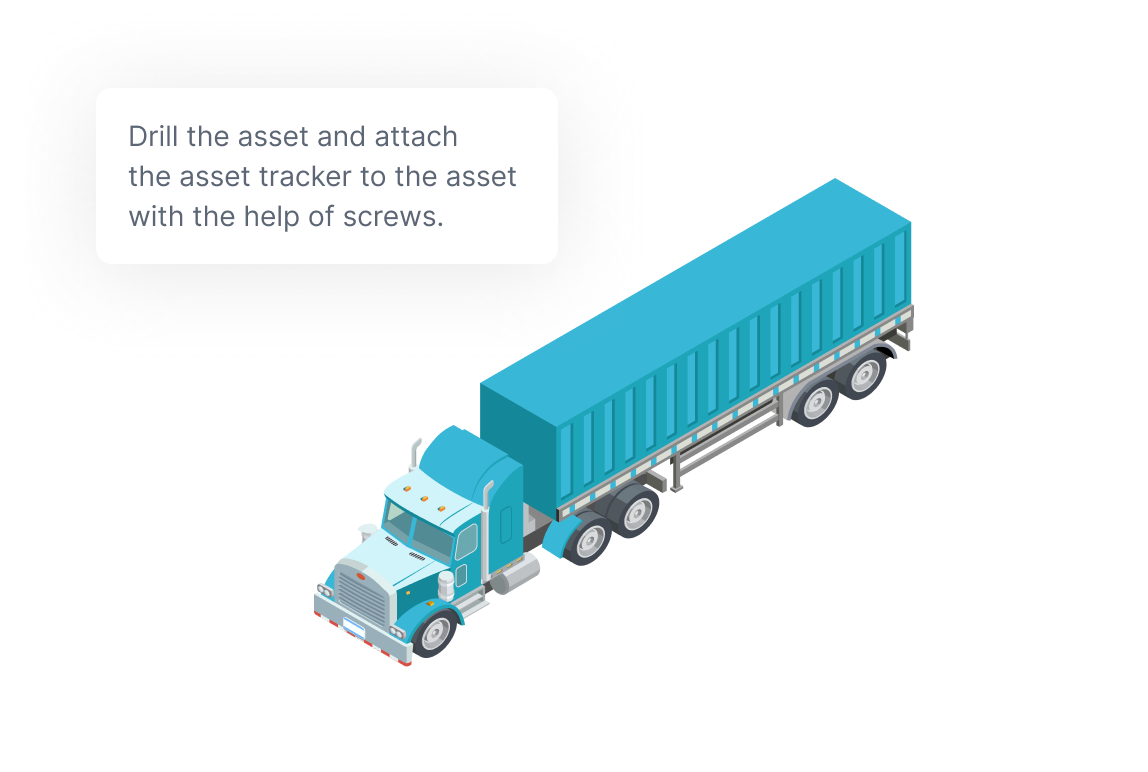

• The device comes with three mounting options: screws, double sided tape and magnet. The mounting kit which comes with device includes screws only.
• 3M Weld Tape and Mounting Magnets are optional. Do not install under the hood or in an enclosed space surrounded by metals.
• The device needs adequate access to GPS signals, so make sure that the install position provides this access.
• It can be mounted anywhere on the vehicle/trailer and must have access to the open sky. Make sure the blue and green LEDs on the unit are blinking.
• A. Normal Ignition: Connect all 3 (red, black and white) wires during the installation. It&apo;s the default mode of operation and all features are available.
• B. Virtual Ignition: Connect only red and white wires during installation. Most suitable for installing on trailers, RVs or assets where ignition wires are unavailable. The tracker is powered by the battery and updates based on the movement of the vehicle. Ignition ON/OFF and Engine status reports are not available.

• Dimension : (30.5 x 68.6 x 104.1 mm)
• Harness connector : 8-pin circular bayone
• Serial Interface : UART
• Optional I/O : 2 Digital Input, 3 ADC Inputs
• Multi-function button : WiFi/BLE Pairing, device wake-up
• GPS : Accuracy: 2.5m, Coldstart: 29s, Hotstart: 1s
• Operating Temperature :–22 °F to 158 °F (–30 °C to 70 °C)
• DC Power : DC 8-30 V
• Internal Battery :1 Ah Li–Ion battery
• Receiver Type :72 channel
• Tracking Sensitivity* :–165 dBm
• Accuracy* :+/– 2.5 CEP
• TTFF Cold Start*:27 seconds (Typical)
• TTFF Cold Start*:1 second (Typical)
• Certifications:FCC, PTCRB, IC, AT&T
• CELLULAR SPECIFICATIONS
  • 1)LTE FDD Bands:2, 4, 12
  • 2)Power Class:3 (23 dBm)
  • 3)SMS:MT / MO
  • 4)LTE Cat. 1 ,3GPP Release 13 ,Frequency Division Duplex
  • (FDD) ,Power Class 3 (23 dBm)

• The mounting kit which comes with device includes screws only. 3M Weld Tape and Mounting Magnets are optional.
• Do not install under the hood or in an enclosed space surrounded by metals.
• The device needs adequate access to GPS signals, so make sure that the install position provides this access.
• It can be mounted anywhere on the vehicle/trailer and must have access to the open sky. Make sure the blue and green LEDs on the unit are blinking.
• Connect only red and white wires during installation. Most suitable for installing on trailers, RVs or assets where ignition wires are unavailable.
