Wireless tracking

Wirelessly monitor the real-time location of your ATV

Emergency Help

Respond accurately to distress calls and send immediate help

Access

Access data via desktop, mobile phone, or tablet

Recovery

Recover stolen ATV with accurate location information

Support

24/7 customer support

GPS ATV Tracking Solutions

Secure your ATVs (all-terrain vehicles) from theft with our avant-garde yet affordable and easy to use GPS tracking solutions. We have state-of-the-art ATV tracking management system that allows you to make the most of your available resources, while also helping you work efficiently. Our technical and customer support team is available round the clock, offering every help you need.

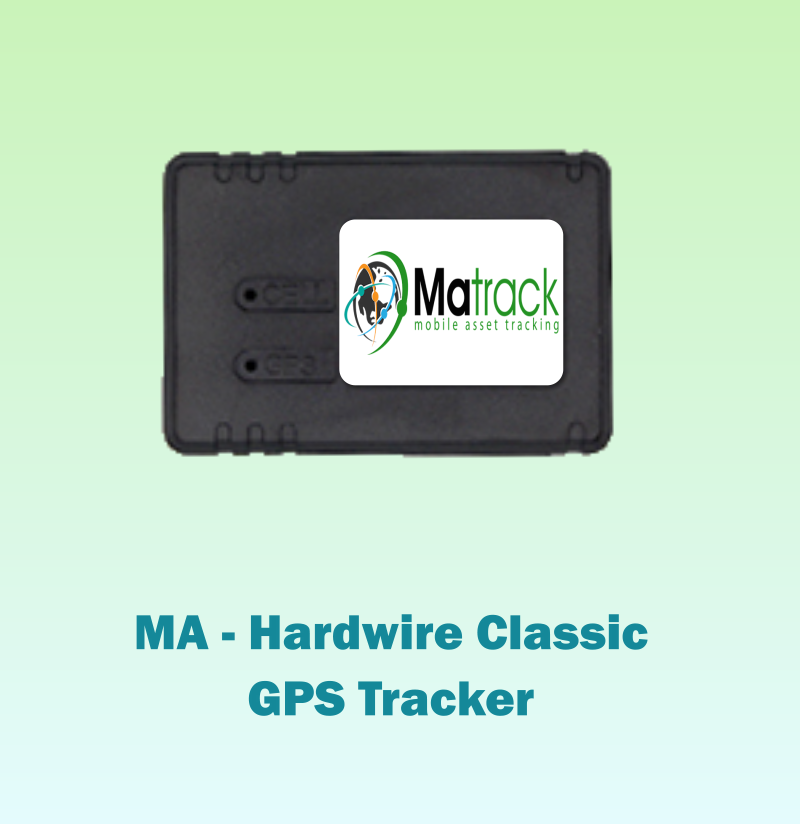

Regular hardwired for ATV
  • Data Network: 4G LTE Cat M1
  • Dimensions:1.2in X 2.7in X 4.1in
  • Keep your assets safe and secure.
  • Real time tracking
  • Coordinate and optimize operations
  • Speed and Hard Braking Alerts
  • Boundary exit/entrance alerts
  • Roadside assistance services
  • Plug and Play

Overview

An excellent means for tracking any vehicle. It is completely integrated with theOn Board Diagnostics systemso you can stay on top of Vehicle Health/Performance issues. Just plug it into your vehicles OBD port(located in all vehicles built after 1996). The MA-OBD Classic is our standard plugin OBD2 device. This piece of hardware plugs directly into the computer of your vehicle, allowing you to analyze precise details registered by your vehicles internal system such as Diagnostics. Though this GPS tracker is not designed for Freightliners, it is extraordinarily beneficial to Fleets such as Driving schools, car rental services, Limousine services, etc.

Key Specifications

  • GPS Specification : Receiver 50 channel, Receiver Sensitivity -161 dBm, Accuracy +/- 2.5m CEP, Cold Start <33 sec, Hot Start < 1 sec
  • Power Requirement :D.C Power 6-18V, GSM 850 35mA average @12V, GSM 1900 30mA average @12V
  • Mechanical : Case Material ABS plastic, Dimensions 1.8 X 1.5 X 1, Weight <2 oz, Operating Temperature -30 ° C to +70°C
  • OBD II Protocols Supported : J1850 PWM, J1850 VPW, ISO-9141-2, ISO-14230 KWP2000, ISO-15765 CAN
  • Physical Connection : OBD Connector J1962, GPS Antenna Integrated, Cellular Antenna Integrated quad-band
  • Certifications :PTCRB, FCC

Installation Guidance

  • The OBD port can be located underneath the dashboard on the driver's side. All vehicles made since 1996 have this port.

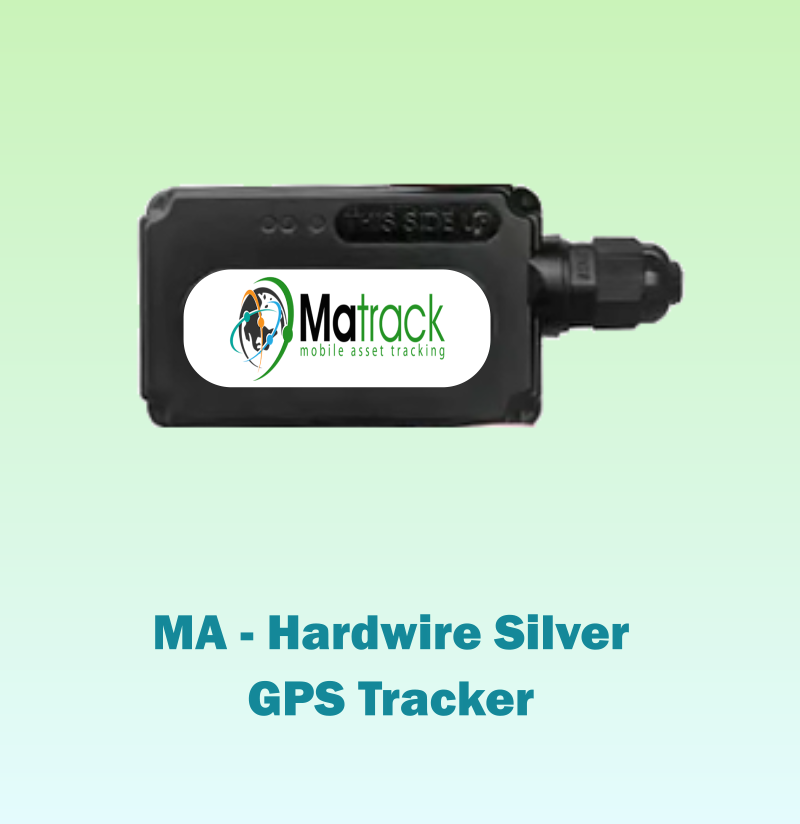

Weatherproof hardwired for ATV
  • Data Network: 4G LTE Cat M1
  • Dimensions: 2.75in X 1.97in X 1.05in
  • Keep your vehicle safe and secure
  • Real time tracking
  • Coordinate and optimize operations
  • Speed and Hard Braking Alerts
  • Boundary exit/entrance alerts
  • Roadside assistance services
  • Wired to your vehicle

Overview

A discreet, tamper resistant device specialized for Fleets and Transport Services. The MA Hardwired Classic GPS tracking device sets the standard for vehicle monitoring and fleet management. With its compact design, direct battery connection, and expansive feature package, this real time tracker can be covertly wired in the vehicle.

Key Specifications

    GPS Specification :
    • Receiver Type : 50 Channels
    • Receiver Sensitivity:-161 dBm
    Power Specifications
    • D.C Power 10-16 VDC
    Physical Connection
    • Power and input/output :14 pin Micro Fit Connector
    Mechanical
    • Case Material:ABS plastic, Dimensions: 2.0 X 1.8 X 1
    • Weight : < 2 oz, Operating Temperature: -30°C to +70° C
    • Storage Temperature:-30°C to +70°C
    Certifications
    • PTCRB
    • FCC
    • Verizon

Installation Guidance

  • Power on the unit. The blue status LED will blink at the rate of once every second within 1 to 2 minutes.
  • This indicates that the device has an available connection with the cellular network.
  • Final installation should be done only after both the blue and green LEDs blink at the rate of once every second.
  • Do not install the device under the hood. We recommend to install at the top most part right under the dashboard.

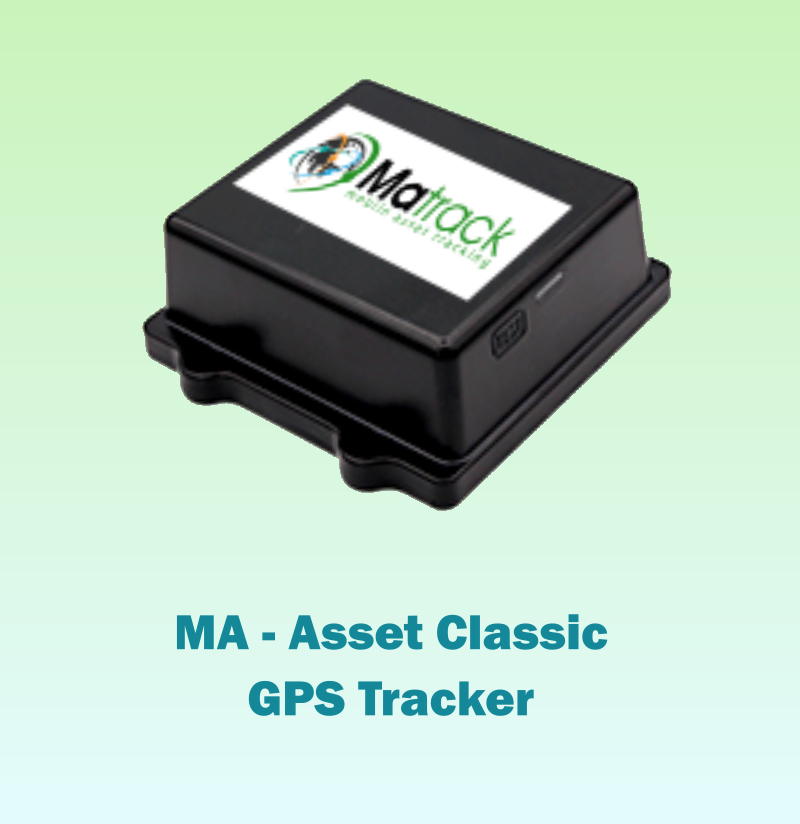

Weatherproof Long Battery Life Asset Tracker for ATV
  • Data Network:LTE (FDD)
  • Dimensions: 2.4in x 1.8in x 1.1in
  • Water & weather-proof
  • Works well in extreme conditions
  • 1 year warranty
  • Speed up asset recovery
  • Email & SMS Alerts
  • Aggressive tracking mode (in case of theft)
  • Roadside assistance
  • Dedicated 24/7 Technical Support

Overview

A discreet, waterproof, tamper-resistant device powered by the battery of your vehicle/asset. Most convenient tool for making sure your property goes nowhere. Just attach it and forget it! This device is a perfect fit for assets such as detachable trailers, vintage autos, boats, construction equipment, and RVs. It can survive the most extreme conditions. Its casing and structure make it both water-resistant and weather-proof.

This tracker also revolutionizes the world of GPS asset tracking by granting you the ultimate freedom to deploy the device without ever having to worry about physically accessing and retrieving it.

Key Specifications

GPS Specifications :
  • Receiver:3GPP Release 13
  • Receiver tracking sensitivity:161 dBm
  • Accuracy:+/- 2.5m CEP, cold Start: <33 sec, Hot Start: < 1 sec
Power Requirement
  • Input Power Current :6-24 VDC
  • Current: approx, 45mA active average, 150µA sleep mode
  • Battery:Internal 650, 960 or 6600 rechargeable Ll-lon
Physical connection
  • 8 pin Microsoft connector, 4 configurable I/O
Mechanical
  • Case Material:ABS plastic-optional weather-proofing
  • Dimensions: 2.4 X 1.8 X 0.7 Note: larger batteries increase dimensions of device
  • Weight:4oz
  • Operating Temperature:30°C to +75°C
  • Status Indicators:Network registration/GPS status
Power Requirement
  • D.C Power : 8–28V
  • Average Idle current:TBD
  • Low Power mode current :TBD
  • Optional Internal Battery:250 mAh Secondary Lithium Ion Battery >
Physical Connection
  • Physical Connection :J1962
  • GPS Antenna:Integrated
  • Cellular Antenna :Integrated dual-band
Certifications:
  • PTCRB
  • FCC
  • AT&T Network

Installation Guidance

  • The device comes with three mounting options: screws, double sided tape and magnet.
  • The mounting kit which comes with device includes screws only. 3M Weld Tape and Mounting Magnets are optional.
  • Do not install under the hood or in an enclosed space surrounded by metals. The device needs adequate access to GPS signals, so make sure that the install position provides this access.
  • It can be mounted anywhere on the vehicle/trailer and must have access to the open sky. Make sure the blue and green LEDs on the unit are blinking.
  • A) Normal Ignition: Connect all 3 (red, black and white) wires during the installation. It's the default mode of operation and all features are available.
  • B) Virtual Ignition: Connect only red and black wires during installation. Most suitable for installing on trailers, RVs or assets where ignition wires are unavailable. The tracker is powered by the battery and updates based on th e movement of the vehicle. Ignition ON/OFF and Engine status reports are not available.

Industry Best ATV Tracking Solution

Matrack GPS ATV tracking not only reduces the risk of theft and help in the easy recovery of the stolen asset but also help you in the efficient management. With our trackers and solutions, you can increase the overall productivity of your business.

Card image

GEOFENCE

On every Matrack GPS tracking device, you can assign up to 10 geofences, and get notified in real-time if any of your ATV crosses the safety of these virtual boundaries. This feature can be instantly activated on our platform, where you can easily set up and change fences, and get unlimited notifications.

Card image

REALTIME TRACKING

ATVs are used as a mode of transportation in rather riskier paths. That is why you need to keep a track of their real-time location with Matrack’s GPS-enabled tracking solutions. With our devices and app, you can be in constant contact with all your vehicles, and receive updates of ignition status, battery alerts, and more. Being connected with your vehicles, enable you to take immediate and necessary actions during an unfortunate event of an accident, breakdown or theft.

We also offer customized subscription solutions based on your need.

Card image

DASHBOARD

Our dashboards are easy to use and are adaptable to any iOS/Android device. It is accessible only through proper authorization and has unique analytical features with a uniquely designed UI.

Card image

REPORTS

Our app and devices work in tandem to record important data and generate reports on mileage, speed, engine status, fuel consumption, driving behavior, and more. These reports help you in taking the crucial business decisions to ensure efficient and maximum business functionality.

Platform

Card image

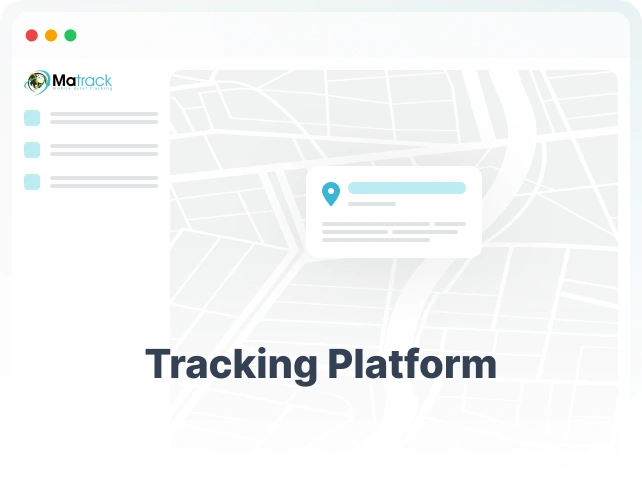

Tracking Platform
Card image

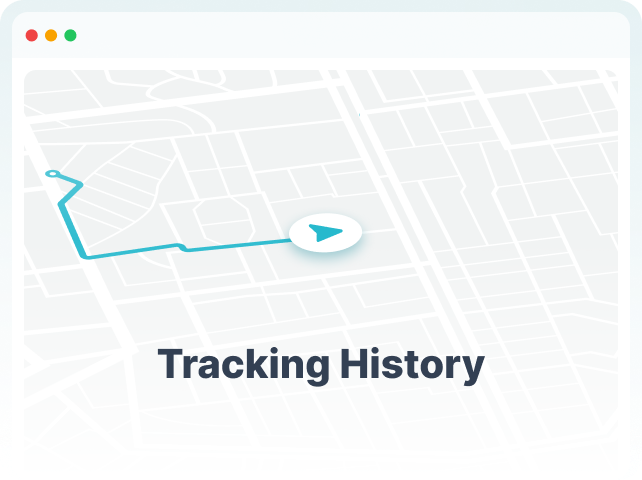

Tracking History
Card image
Geo Fence
Card image
Travel Log Report

Download Our Mobile Apps Today!

Stay Connected across all the platform while on the go

Card image
Card image
Amex Fuel Card
The Matrack 2-in-1 solution has partnered with American Express to provide not only more flexibility and benefits than an independent factor, but also offer additional advantages. Cash flow for trucking companies can be unpredictable. That s why the Matrack Cash Flow Solution gives you up to 60 days to pay with no interest so you have greater financial flexibility. We believe clear pricing keeps customers happy, and happy customers fuel our business. Simply pay for the fuel purchased during the billing period. No matter how many purchases occur on the account during billing period, there are no additional card fees or transaction fees.

No Contract, Pay Month to Month,
No Activation and Hidden Fees


MATRACK ATV FLEET TRACKING

What Matters Most

  • Waterproof all-weather sturdy tracking devices
  • Real-time location
  • Aggressive tracking mode in case of theft or accident
  • Schedule regular maintenance
  • Assign designated area of operation for rental ATVs
The Solution For GPS Tracking

Secure your ATV

Matrack GPS trackers are discreet yet sturdy, equipped with 4G connectivity thereby ensuring that you know where your ATV is at all times. ATVs have to often face adverse weather and terrain conditions. With Matrack GPS tracking and FMS, you can optimize route, and with our real-time tracking and Geofence, you can get alerts of unauthorized use. Our tracking devices also come with waterproof magnetic cases that can withstand anything. They are compact in size and can be easily attached anywhere on your ATV. As soon as your ATV diverges from its designated path, you will get a notification and take the required action to secure your asset.

Manage your fleet efficiently

With the information that Matrack device and FMS collects, you gain useful insights into your business functions, and it helps you improve them. Route optimization, Geofence alerts, fuel consumption reports, driving status, driving behavior, engine status, and other such information assist you in making informed and proactive decisions to enhance your productivity with maximum utilization of resources.

Empower Your Fleet.
Get Real Results.

Manage Your Fleet with Fewer Resources. Maximize output by organizing, scheduling, appointing jobs and deliveries to your drivers with our integrated Dispatch Platform. In a field-based delivery operation, when your drivers are beyond anyone's ability to see, you truly need to recognize what is happening. Integrate fleet maintenance software with your asset management systems to track and analyze increasingly complex driver and vehicle data.

Testimonials

"Domestic"

LEONARD A

Owner: Information Services, 1-10 employees, Used the software for: 2+ years

Overall:

Great product, easy to use.

Pros:

The use of the tracking software was easy and simple to use. I really like the importance of providing a great service to my clients and this product help do that.

Overall Rating
  • Ease of Use
  • Customer Service
  • Features
  • Value for Money
  • Likelihood to Recommend
  • 4/5
  • 4/5
  • 4/5
  • 5/5
  • 5/5

"Excellent product for the price."

CHARLIE W

Business owner: Automotive, 1-10 employees, Used the software for: 2+ years

Overall:

Very Satisfied, good and reliable unit

Pros:

Multiple devices for various applications. easy install. inexpensive.

Switched From:

Verizon Connect Work

Reasons for Choosing Matrack GPS:

Price point and willingness to work with a small business. no buy in

Overall Rating
  • Ease of Use
  • Customer Service
  • Features
  • Value for Money
  • Likelihood to Recommend
  • 5/5
  • 5/5
  • 5/5
  • 5/5
  • 5/5

"Gps tracking unit"

JEAN D

owner:Electrical/Electronic Manufacturing, Self-employed, Used the software for: 6-12 months

Overall:

Very Satisfied, good and reliable unit

Pros:

To track automobile/truck/motorcycle any moving unit (FAST ACTIVATION)

Switched From:

US fleet tracking

Reasons for Choosing Matrack GPS:

Price and size of the unit and faster activation

Overall Rating
  • Ease of Use
  • Customer Service
  • Features
  • Value for Money
  • Likelihood to Recommend
  • 5/5
  • 5/5
  • 5/5
  • 5/5
  • 5/5

"The Best in the Industry"

RICK R.

Owner: Legal Services, 1-10 employees, Used the software for: 1-2 years

Overall:

Matrack first starting calling and bugging the crap out of me but Spytec finally got so unresponsive that I decided to give Matrack a shot and I'm glad I did. Much more responsive customer service.

Pros:

Software is pretty easy to use. There are a few minor changes I'd make if I were the engineer but gets the job done.

Reasons for Choosing Matrack GPS:

Spytec is too unresponsive.

Overall Rating
  • Ease of Use
  • Customer Service
  • Features
  • Value for Money
  • Likelihood to Recommend
  • 4/5
  • 4/5
  • 4/5
  • 4/5
  • 4/5

"Very easy to use"

ART K.

Investigator: Security and Investigations, 1-10 employees, Used the software for: 2+ years

Overall:

Only complaint is when I do have an issue with the tracking device stalling in place and there was an indication that the vehicle was moving (in place for more than 30 minutes or longer) and needed to be reset was that the help desk not responding in a very timely manner. Maybe because someone is not monitoring the help request 24/7. My vehicles could be out anytime including late nights or early mornings.

Pros:

Very easy to use and maintain for daily activity reports.

Overall Rating
  • Ease of Use
  • Customer Service
  • Features
  • Value for Money
  • Likelihood to Recommend
  • 5/5
  • 5/5
  • 4/5
  • 5/5
  • 5/5

Frequently Asked Questions

How quickly can someone assist with GPS tracker for my ATV?

You can reach tech support 24*7 via email at support@matrackinc.com. For any ATV tracking support, you can contact us over call Monday through Friday, 9:00 AM- 5:00 PM PST.

Can I use GPS for ATV to locate my lost or stolen ATVs?

Yes. Matrack ATV trackers have an in-built aggressive ATV tracking mode that helps in theft prevention. In case your all-terrain vehicle (ATV) is stolen, the proactive location tracking feature allows fast recovery, thereby minimizing your losses.

Is there a warranty for the devices?

Yes, we provide one year warranty on our ATV tracking devices.

Do I have to pay a monthly fee?

Yes.

Is there any hidden fees or charges?

There are NO hidden charges and NO contracts also.

How long does the battery last?

Low power consumption gives the ATV tracking device a stellar battery life of up to 5 years.

Can I see a demo of the GPS ATV tracker before I buy it?

Yes. Of course! All you need to do is to contact our experienced and friendly sales staff, and we can schedule a meeting for the ATV tracker demo accordingly.

Does the GPS ATV tracker provide mileage and fuel reports?

Yes, the ATV tracker by Matrack provides reports for mileage and fuel usage, for free. There are no additional or hidden charges for the same.
