Industry Best Fleet Tracking Solution

Matrack GPS Trackers provide asset management solution to efficiently manage your fleet and to monitor driver activities to prevent any vehicle misuse. Our GPS fleet tracking system can help decrease cost and improve the overall productivity of your business.

GPS Fleet Tracking Case Studies

Continental Carriers is a logistic company based in Fresno, California. It is a medium sized trucking company, dealing with clients all over the country. Its Fleet Manager, Mr. Prem Sodhi had decided to engage assistance from Matrack Incorporations.

Skyway Trucking is a medium-sized transport trucking company based in Ontario, Canada. Despite being in the trucking industry for many years, they were finding it difficult to cater to every client's customized needs and were looking for a technology partner.

Based in Charlotte, North Carolina, Crosby Anderson Freights is a medium sized trucking company, serving many clients all over the United States. The company was incorporated in 2016, and with the changes in HoS rules and ELD mandate.

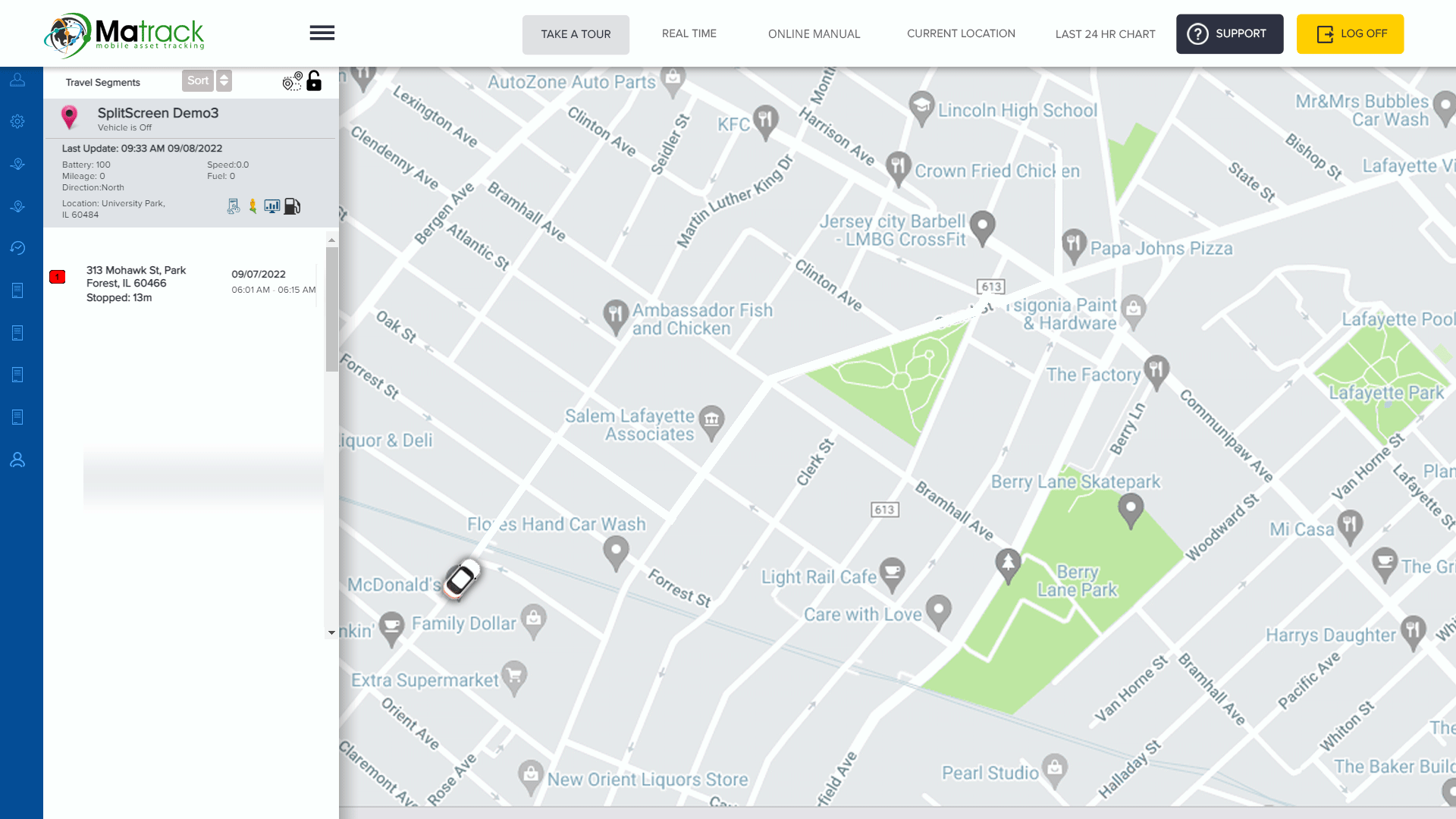

Track Movement of Vehicles, Assets, and Equipment Monitor Your Fleet & Assets With Accuracy

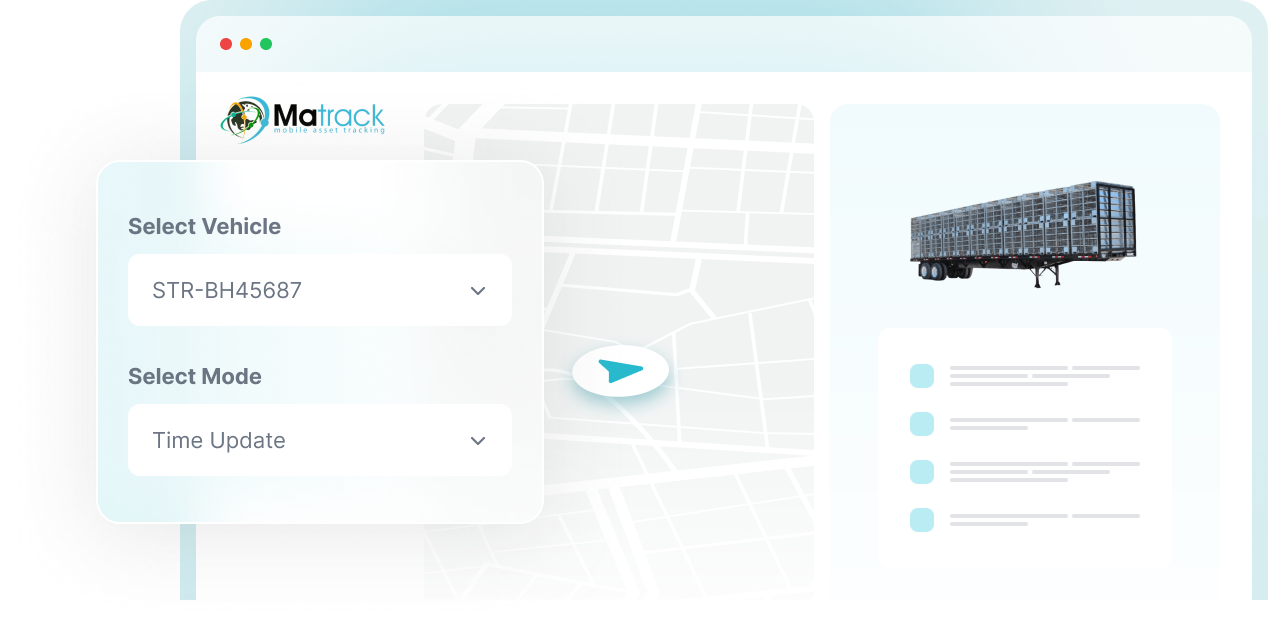

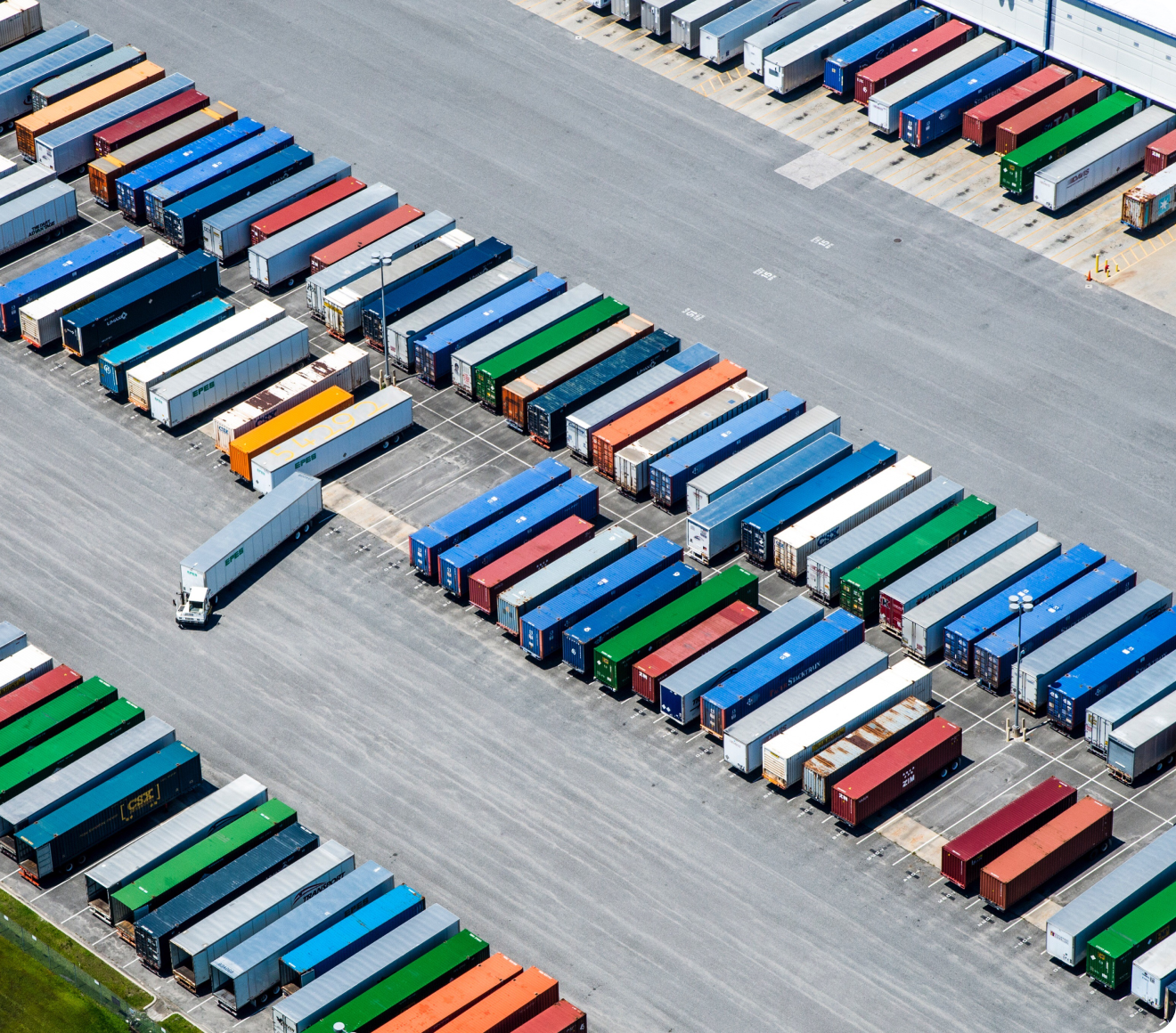

The Matrack trailer and asset tracking solution is built on a platform of extreme hardware reliability, round the clock customer support, inhouse hardware innovation that gives an unprecedented lifetime upto 7 years and design to withstand extreme weather condition. All of this works in tandem with the Matrack ELD and fleet management solution

Card image

Maximize Trailer
Utilization

Card image

Ensure Security of
your assets

Card image

State Mileage-IFTA
Reports

Card image

See The Status Of All Your Fleet Vehicles

Card image

Predict Usage, ensure timely maintenance

Card image

Manage Your Fleet With Fewer Resources

SOLUTIONS

We provide user friendly and economical solutions to asset and GPS fleet tracking, thereby providing revolutionary affordable and straightforward solutions to individuals and companies. We also provide expert and timely technical and customer support; continuously adapting and adjusting to each individual and company’s’ unique needs.

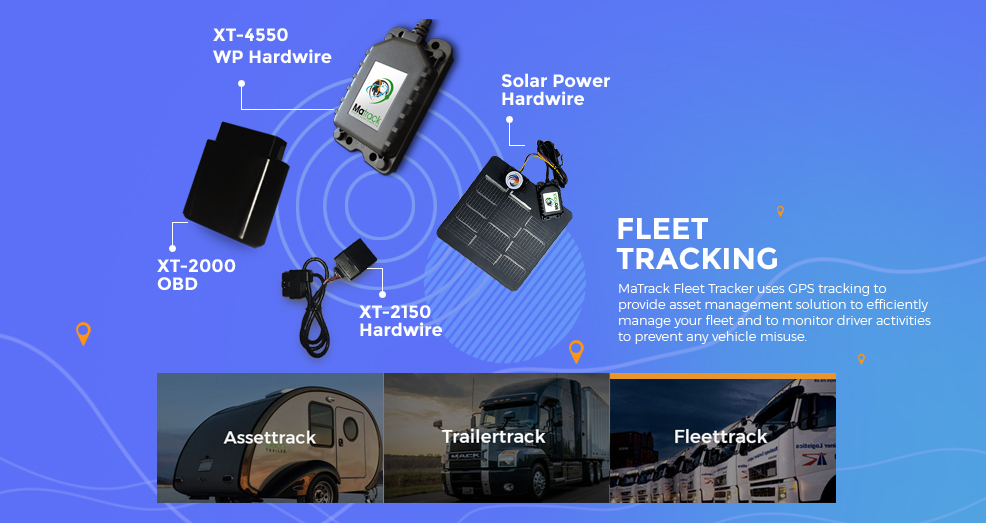

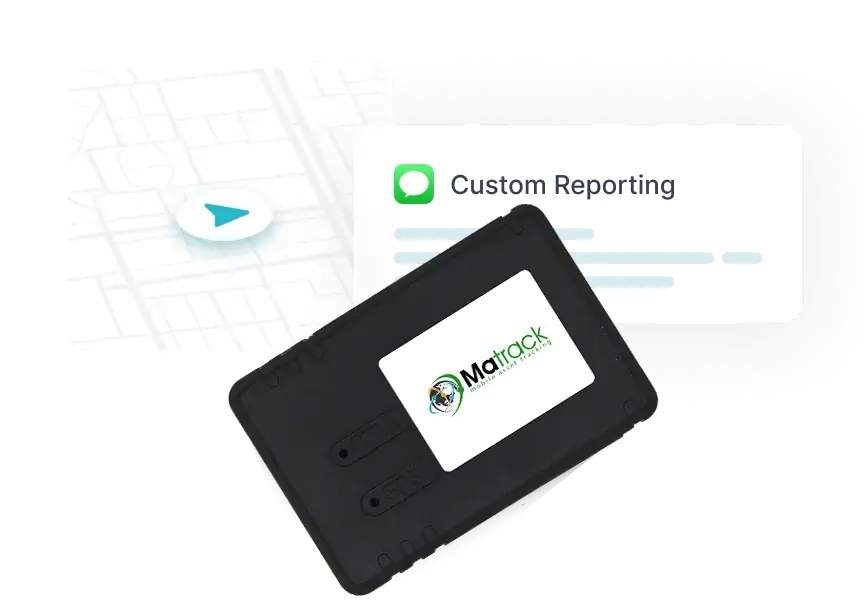

Fleet Tracking
Manage Your Fleet with Fewer Resources. Maximize output by organizing, scheduling, appointing jobs and deliveries to your drivers with our integrated Dispatch Platform. In a field-based delivery operation, when your drivers are beyond anyone ability to see, you truly need to recognize what is happening. Integrate fleet maintenance software with your asset management systems to track and analyze increasingly complex driver and vehicle data. By streamlining fleet maintenance processes, preventative maintenance, routine inspections and repairs won t slip through the cracks saving the company money while helping ensure safety on the road.

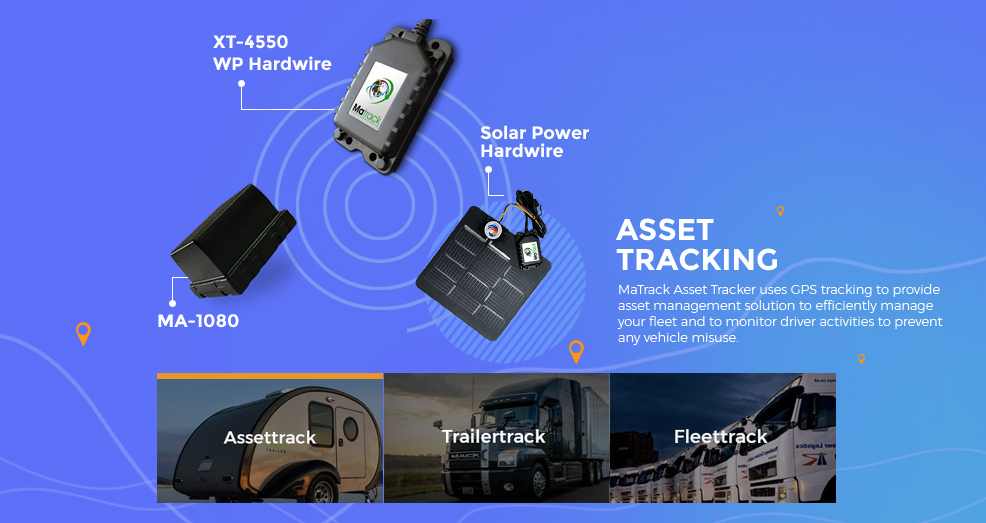

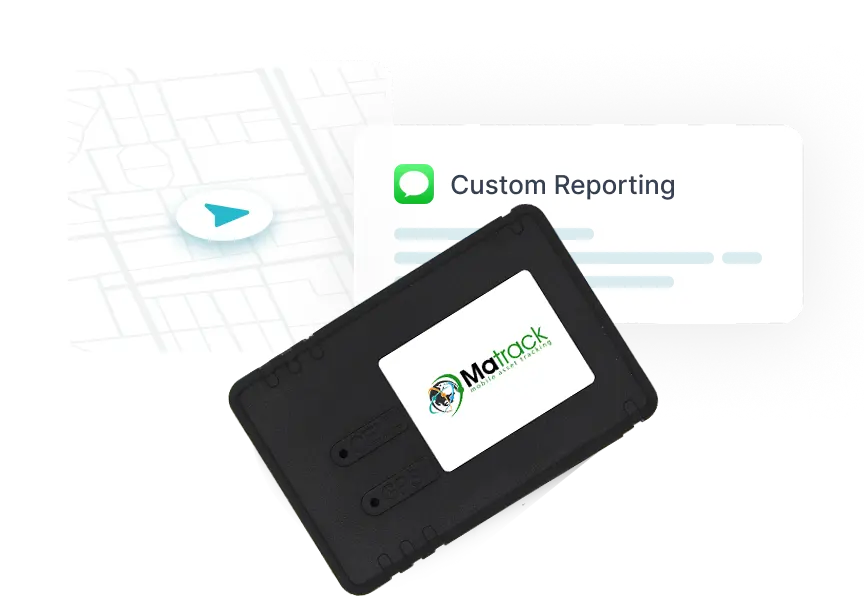

Asset & Trailer Tracking
Matrack GPS trackers for vehicles and equipment provide real time alerts for you to quickly and easily locate any vehicle or asset while it is on the road or at a job site. Be notified by SMS or email for instant speed, geofence, hard braking, hard acceleration and low battery alerts. Add multiple users and configure alerts according to your specific needs. Evaluate vehicle drive history and speeding reports to see which vehicles are being improperly driven. Detect out of office hour usage and prevent unauthorized use of company vehicles. Use driver safety reports to see which drivers need additional training for better driving behavior. Provides state mileage reports and also fuel usage report.

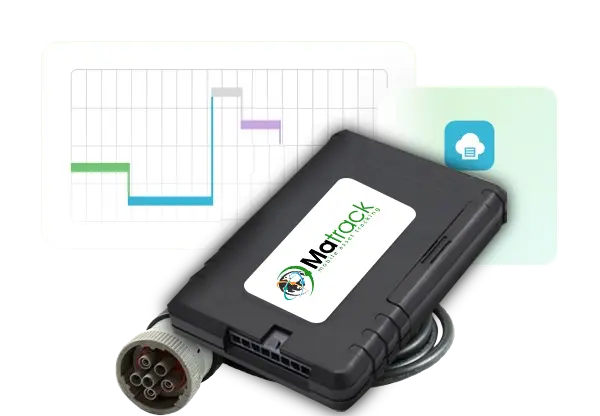

ELD Solutions
Our hardware is ELD compliant, easy to install, Bluetooth compatible, and stacked with a load of valuable services to help streamline your business reporting. Our Device is DOT compliant and listed in FMCSA s ELD approval list. The ELD logbook app provides voice recognition for making status changes. Matrack ELD provides tools to keep Fleet Managers up to speed on loading/unloading procedures from start to end. Our intelligent and fully automated solution for IFTA compliance saves you hours of filing time and avoids costly errors. Matrack devices easily track when drivers are on or off duty and provide an instantaneous view into driver s total hours.

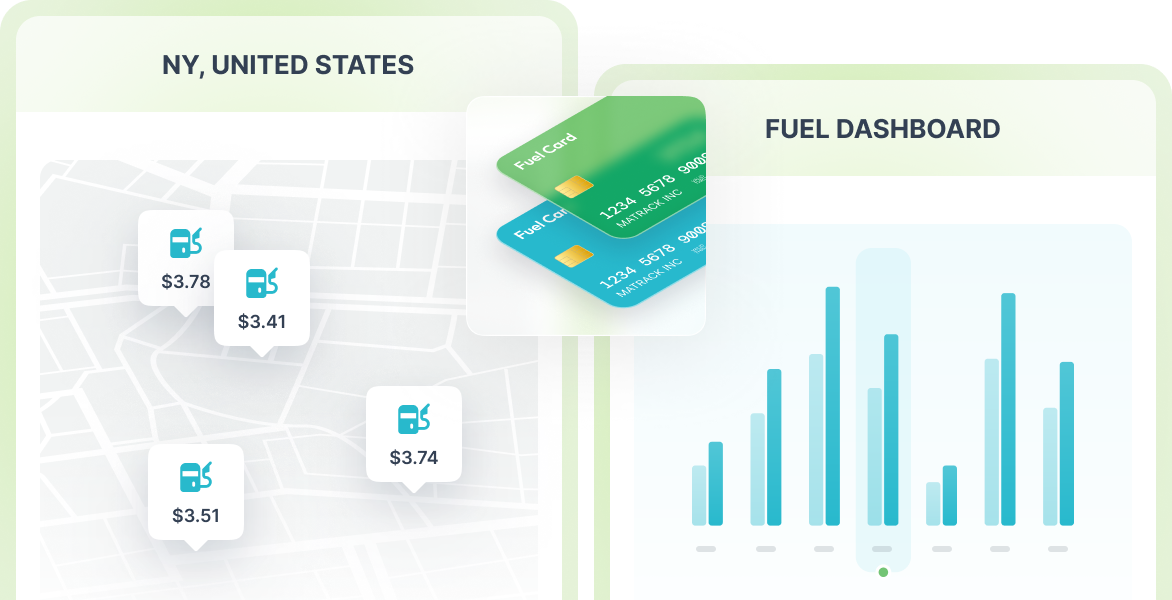

Amex Fuel Card
The Matrack 2-in-1 solution has partnered with American Express to provide not only more flexibility and benefits than an independent factor, but also offer additional advantages. Cash flow for trucking companies can be unpredictable. That s why the Matrack Cash Flow Solution gives you up to 60 days to pay with no interest so you have greater financial flexibility. We believe clear pricing keeps customers happy, and happy customers fuel our business. Simply pay for the fuel purchased during the billing period. No matter how many purchases occur on the account during billing period, there are no additional card fees or transaction fees.

No Contract, Pay Month to Month,
No Activation and Hidden Fees


The Solution For GPS Tracking

MATRACK OFFERS

The Best Solution For GPS Tracking

No Hidden Fees

Affordable Monthly Rates

Easy-to-Install Hardwire

Same-Day Shipping

Fleet Discounts

Discrete, Tamper-Proof

US-Based Customer Support

Products and Services

Matrack GPS Fleet Trackers provide asset management solution to efficiently manage your fleet and to monitor driver activities to prevent any vehicle misuse. Our GPS fleet tracking system can help decrease cost and improve the overall productivity of your business.

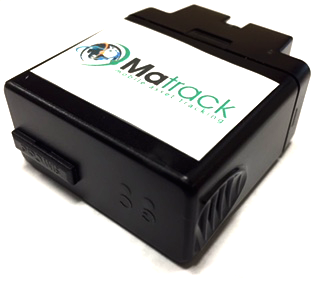

MA-OBD Classic Plug-in
  • Data Network: 4G LTE Cat M1
  • Dimensions:1.2in X 2.7in X 4.1in
  • Keep your assets safe and secure.
  • Real time tracking
  • Coordinate and optimize operations
  • Speed and Hard Braking Alerts

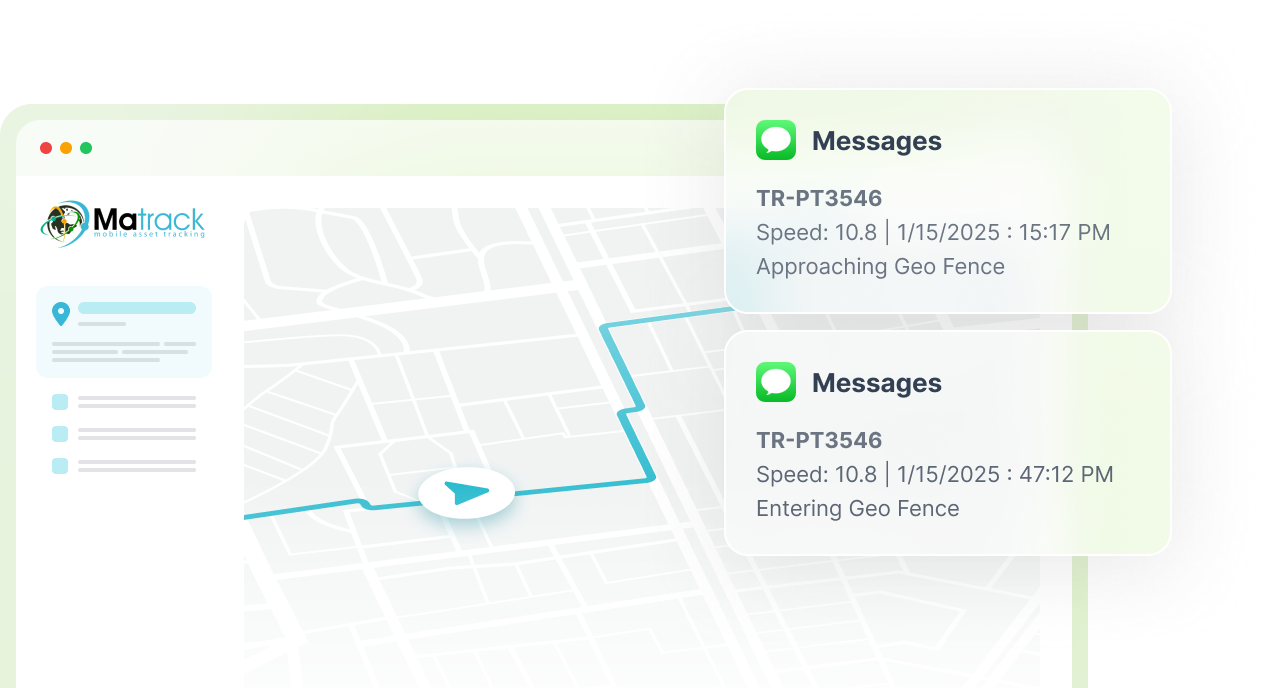

  • Boundary exit/entrance alerts
  • Roadside assistance services
  • Plug and Play

Overview

An excellent means for tracking any vehicle. It is completely integrated with theOn Board Diagnostics systemso you can stay on top of Vehicle Health/Performance issues. Just plug it into your vehicles OBD port(located in all vehicles built after 1996). The MA-OBD Classic is our standard plugin OBD2 device. This piece of hardware plugs directly into the computer of your vehicle, allowing you to analyze precise details registered by your vehicles internal system such as Diagnostics. Though this GPS tracker is not designed for Freightliners, it is extraordinarily beneficial to Fleets such as Driving schools, car rental services, Limousine services, etc.

Key Specifications

  • GPS Specification : Receiver 50 channel, Receiver Sensitivity -161 dBm, Accuracy +/- 2.5m CEP, Cold Start <33 sec, Hot Start < 1 sec
  • Power Requirement :D.C Power 6-18V, GSM 850 35mA average @12V, GSM 1900 30mA average @12V
  • Mechanical : Case Material ABS plastic, Dimensions 1.8 X 1.5 X 1, Weight <2 oz, Operating Temperature -30 ° C to +70°C
  • OBD II Protocols Supported : J1850 PWM, J1850 VPW, ISO-9141-2, ISO-14230 KWP2000, ISO-15765 CAN
  • Physical Connection : OBD Connector J1962, GPS Antenna Integrated, Cellular Antenna Integrated quad-band
  • Certifications :PTCRB, FCC

Installation Guidance

  • The OBD port can be located underneath the dashboard on the driver's side. All vehicles made since 1996 have this port.
MA-Hardwire Classic
  • Data Network: 4G LTE Cat M1
  • Dimensions: 2.75in X 1.97in X 1.05in
  • Keep your vehicle safe and secure
  • Real time tracking
  • Coordinate and optimize operations
  • Speed and Hard Braking Alerts
  • Boundary exit/entrance alerts
  • Roadside assistance services
  • Wired to your vehicle

Overview

A discreet, tamper resistant device specialized for Fleets and Transport Services. The MA Hardwired Classic GPS tracking device sets the standard for vehicle monitoring and fleet management. With its compact design, direct battery connection, and expansive feature package, this real time tracker can be covertly wired in the vehicle.

Key Specifications

    GPS Specification :
    • Receiver Type : 50 Channels
    • Receiver Sensitivity:-161 dBm
    Power Specifications
    • D.C Power 10-16 VDC
    Physical Connection
    • Power and input/output :14 pin Micro Fit Connector
    Mechanical
    • Case Material:ABS plastic, Dimensions: 2.0 X 1.8 X 1
    • Weight : < 2 oz, Operating Temperature: -30°C to +70° C
    • Storage Temperature:-30°C to +70°C
    Certifications
    • PTCRB
    • FCC
    • Verizon

Installation Guidance

  • Power on the unit. The blue status LED will blink at the rate of once every second within 1 to 2 minutes.
  • This indicates that the device has an available connection with the cellular network.
  • Final installation should be done only after both the blue and green LEDs blink at the rate of once every second.
  • Do not install the device under the hood. We recommend to install at the top most part right under the dashboard.
MA-Hardwire Silver
  • Data Network:LTE (FDD)
  • Dimensions: 2.4in x 1.8in x 1.1in
  • Water & weather-proof
  • Works well in extreme conditions
  • 1 year warranty
  • Speed up asset recovery
  • Email & SMS Alerts
  • Aggressive tracking mode (in case of theft)
  • Roadside assistance
  • Dedicated 24/7 Technical Support

Overview

A discreet, waterproof, tamper-resistant device powered by the battery of your vehicle/asset. Most convenient tool for making sure your property goes nowhere. Just attach it and forget it! This device is a perfect fit for assets such as detachable trailers, vintage autos, boats, construction equipment, and RVs. It can survive the most extreme conditions. Its casing and structure make it both water-resistant and weather-proof.

This tracker also revolutionizes the world of GPS asset tracking by granting you the ultimate freedom to deploy the device without ever having to worry about physically accessing and retrieving it.

Key Specifications

GPS Specifications :
  • Receiver:3GPP Release 13
  • Receiver tracking sensitivity:161 dBm
  • Accuracy:+/- 2.5m CEP, cold Start: <33 sec, Hot Start: < 1 sec
Power Requirement
  • Input Power Current :6-24 VDC
  • Current: approx, 45mA active average, 150µA sleep mode
  • Battery:Internal 650, 960 or 6600 rechargeable Ll-lon
Physical connection
  • 8 pin Microsoft connector, 4 configurable I/O
Mechanical
  • Case Material:ABS plastic-optional weather-proofing
  • Dimensions: 2.4 X 1.8 X 0.7 Note: larger batteries increase dimensions of device
  • Weight:4oz
  • Operating Temperature:30°C to +75°C
  • Status Indicators:Network registration/GPS status
Power Requirement
  • D.C Power : 8–28V
  • Average Idle current:TBD
  • Low Power mode current :TBD
  • Optional Internal Battery:250 mAh Secondary Lithium Ion Battery >
Physical Connection
  • Physical Connection :J1962
  • GPS Antenna:Integrated
  • Cellular Antenna :Integrated dual-band
Certifications:
  • PTCRB
  • FCC
  • AT&T Network

Installation Guidance

  • The device comes with three mounting options: screws, double sided tape and magnet.
  • The mounting kit which comes with device includes screws only. 3M Weld Tape and Mounting Magnets are optional.
  • Do not install under the hood or in an enclosed space surrounded by metals. The device needs adequate access to GPS signals, so make sure that the install position provides this access.
  • It can be mounted anywhere on the vehicle/trailer and must have access to the open sky. Make sure the blue and green LEDs on the unit are blinking.
  • A) Normal Ignition: Connect all 3 (red, black and white) wires during the installation. It’s the default mode of operation and all features are available.
  • B) Virtual Ignition: Connect only red and black wires during installation. Most suitable for installing on trailers, RVs or assets where ignition wires are unavailable. The tracker is powered by the battery and updates based on th e movement of the vehicle. Ignition ON/OFF and Engine status reports are not available.

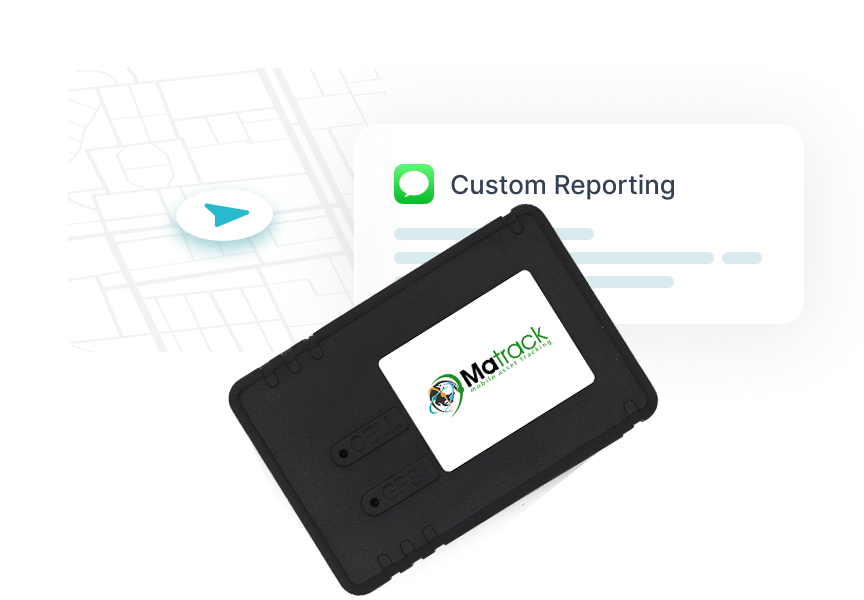

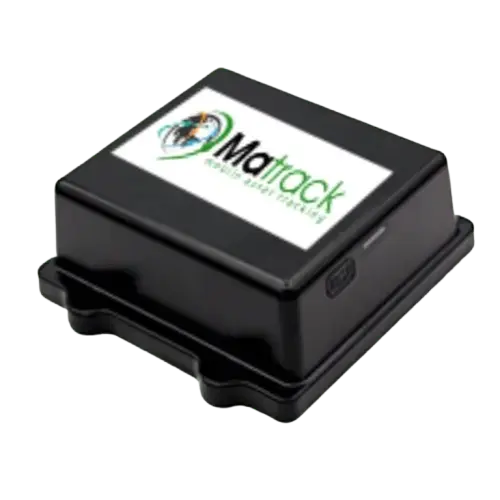

MA-Asset Classic
  • Data Network: 4G LTE
  • Dimensions: 2.87in X 2.4in X 1.69in
  • 1 minute installation
  • 2 pings per day
  • Built-in magnets attaching to metal surfaces
  • Battery life up to 5 years
  • Best coverage with AT&T SIMs
  • Geofence alerts via email/SMS
  • Repo mode for asset recovery

Overview

Introducing our new asset tracker, the best and most convenient tool for preventing unauthorized use of your assets. This asset tracker is perfect for many asset types, including such as detachable trailers, vintage autos, boats, construction equipment and RVs. It can survive the most extreme conditions. Its casing and structure make it both water-resistant and weather-proof.

The MA-Asset Classic is considered to be our standard in the world of asset tracking systems, simple sturdy and with enduring battery power, this piece of equipment practically sells itself.

Key Specifications

  • Dimension : 7.3cm X 6.1cm X 4.3cm (2.87in X 2.4in X 1.69in)
  • Weight : 204g (7.2oz)
  • Battery : 3.6V Lithium, 13Ah
  • Current consumption : ~10.4mA per day for reporting every 12 hours
  • Supported bands : 4G LTE: 12(700MHz), 5(850MHz), 4(1700MHz) and 2(1900MHz) 3G UMTS: 5(850MHz), 2(1900MHz)
  • GPS : Accuracy: 2.5m, Coldstart: 29s, Hotstart: 1s
  • Navigation : Update rate: 18Hz (Max.), Sensitivity: -166 dBm
  • Operational limits : Altitude: 50,000m (164042ft), Velocity: 500m/s
  • Operating temperature : -25OC to +65OC (-13OF to 149 OF)
  • Storage temperature : -40OC to +85OC (-40 OF to 185 OF)

Installation Guidance

  • The device needs to have as much access to the open as possible to retain a connection to GPS satellites
  • Device cannot have full metal enclosures.
  • Do NOT place the device in the glovebox, trunk, middle of the undercarriage, in wheel well, inside metal bumper or any enclosed space.
  • We suggest placement of the tracker under or behind the driver or passenger seat or underneath the vehicle as close to the edge as possible.
MA-Hardwire Classic
  • Data Network: 4G LTE Cat M1
  • Dimensions: 2.75in X 1.97in X 1.05in
  • Real time location alerts
  • Real time tracking
  • Hard braking, hard acceleration
  • Engine running data
  • Works seamlessly with Matrack Dispatch and Fleet management

Overview

A discreet, tamper resistant device specialized for Fleets and Transport Services. The MA Hardwired Classic GPS tracking device sets the standard for vehicle monitoring and fleet management. With its compact design, direct battery connection, and expansive feature package, this real time tracker can be covertly wired in the vehicle.

Key Specifications

    GPS Specification :
    • Receiver Type : 50 Channels
    • Receiver Sensitivity:-161 dBm
    Power Specifications
    • D.C Power 10-16 VDC
    Physical Connection
    • Power and input/output :14 pin Micro Fit Connector
    Mechanical
    • Case Material:ABS plastic, Dimensions: 2.0? X 1.8? X 1?
    • Weight : < 2 oz, Operating Temperature: -30°C to +70° C
    • Storage Temperature:-30°C to +70°C
    Certifications
    • PTCRB
    • FCC
    • Verizon

Installation Guidance

  • The device comes with three mounting options: screws, double sided tape and magnet. The mounting kit which comes with device includes screws only.
  • 3M Weld Tape and Mounting Magnets are optional. Do not install under the hood or in an enclosed space surrounded by metals.
  • The device needs adequate access to GPS signals, so make sure that the install position provides this access.
  • It can be mounted anywhere on the vehicle/trailer and must have access to the open sky. Make sure the blue and green LEDs on the unit are blinking.
  • A. Normal Ignition: Connect all 3 (red, black and white) wires during the installation. It&apo;s the default mode of operation and all features are available.
  • B. Virtual Ignition: Connect only red and white wires during installation. Most suitable for installing on trailers, RVs or assets where ignition wires are unavailable. The tracker is powered by the battery and updates based on the movement of the vehicle. Ignition ON/OFF and Engine status reports are not available.
MA-Hardwire Silver
  • Data Network:LTE (FDD)
  • Dimensions: 2.4in x 1.8in x 1.1in
  • IP67 case, suited for heavy industrial use
  • 1 month long back up battery
  • Real time location
  • Vehicle running or Equipment use data

Overview

A discreet, waterproof, tamper-resistant device powered by solar panel. Most convenient tool for making sure your property goes nowhere. Just attach it and forget it! This device is a perfect fit for assets such as detachable trailers, vintage autos, boats, construction equipment, and RVs.

As our most environmentally conscious and eco-friendly asset tracking device, the MA Hardwired Gold is in a class of its own. This tracker also revolutionizes the world of GPS asset tracking by granting you the ultimate freedom to deploy the device without ever having to worry about physically accessing and retrieving it.

Key Specifications

  • Dimension : (30.5 x 68.6 x 104.1 mm)
  • Harness connector : 8-pin circular bayone
  • Serial Interface : UART
  • Optional I/O : 2 Digital Input, 3 ADC Inputs
  • Multi-function button : WiFi/BLE Pairing, device wake-up
  • GPS : Accuracy: 2.5m, Coldstart: 29s, Hotstart: 1s
  • Operating Temperature :–22 °F to 158 °F (–30 °C to 70 °C)
  • DC Power : DC 8-30 V
  • Internal Battery :1 Ah Li–Ion battery
  • Receiver Type :72 channel
  • Tracking Sensitivity* :–165 dBm
  • Accuracy* :+/– 2.5 CEP
  • TTFF Cold Start*:27 seconds (Typical)
  • TTFF Cold Start*:1 second (Typical)
  • Certifications:FCC, PTCRB, IC, AT&T
  • CELLULAR SPECIFICATIONS
    • 1)LTE FDD Bands:2, 4, 12
    • 2)Power Class:3 (23 dBm)
    • 3)SMS:MT / MO
    • 4)LTE Cat. 1 ,3GPP Release 13 ,Frequency Division Duplex
    • (FDD) ,Power Class 3 (23 dBm)

Installation Guidance

  • The mounting kit which comes with device includes screws only. 3M Weld Tape and Mounting Magnets are optional.
  • Do not install under the hood or in an enclosed space surrounded by metals.
  • The device needs adequate access to GPS signals, so make sure that the install position provides this access.
  • It can be mounted anywhere on the vehicle/trailer and must have access to the open sky. Make sure the blue and green LEDs on the unit are blinking.
  • Connect only red and white wires during installation. Most suitable for installing on trailers, RVs or assets where ignition wires are unavailable.

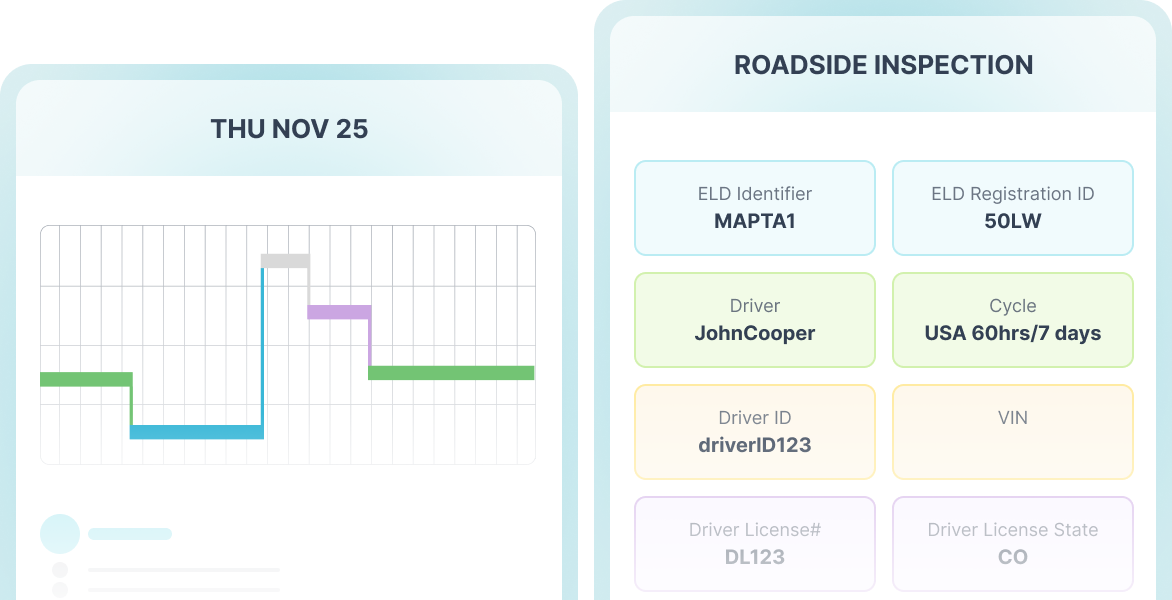

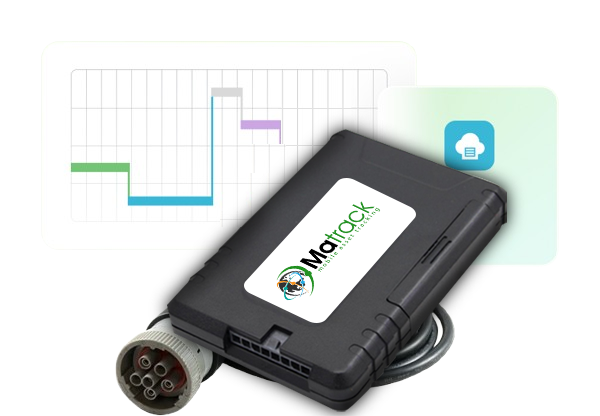

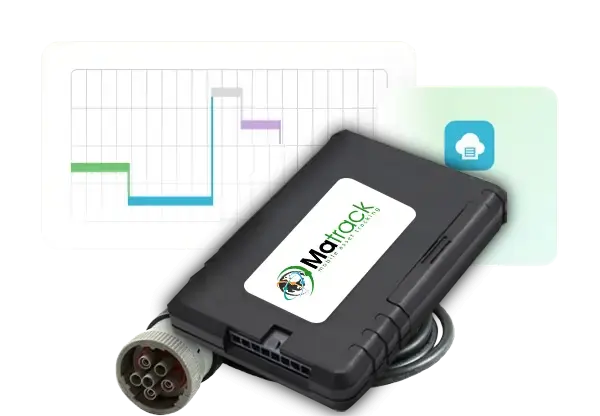

ELD Compliance
  • FMCSA-listed ELD
  • DOT compliant
  • Works with any mobile device

The MA-ELD Classic is DOT compliant and listed in the FMCSA’s ELD approval list. One of the greatest advantage of having an ELD is to be able to transfer data files to security officer digitally. ELD has a complete set of steps to determine whether a CMV is in driving or non-driving status.

When a CMV is moving at a speed of more than 5mph (which is a preset threshold as per FMCSA), the ELD is automatically prompted to consider the vehicle to be in driving status.

Once the speed of the vehicle comes down to 0 mph, and stays at that speed for more than three consecutive seconds, the ELD automatically switches to non-driving status.

EDVIR & Defect Reporting
  • Create pre-EDVIR reports
  • Create post-EDVIR reports
  • Transfer reported defects

Create pre-EDVIR reports. Create post-EDVIR reports. Transfer reported defects. Warning notifications when fuel level drops below threshold. Schedule and record the maintenance of your fleet vehicles for easy reminders based on mileage, engine hours or time. Automated email reminders make sure you never miss another oil change, tire change, or inspection.

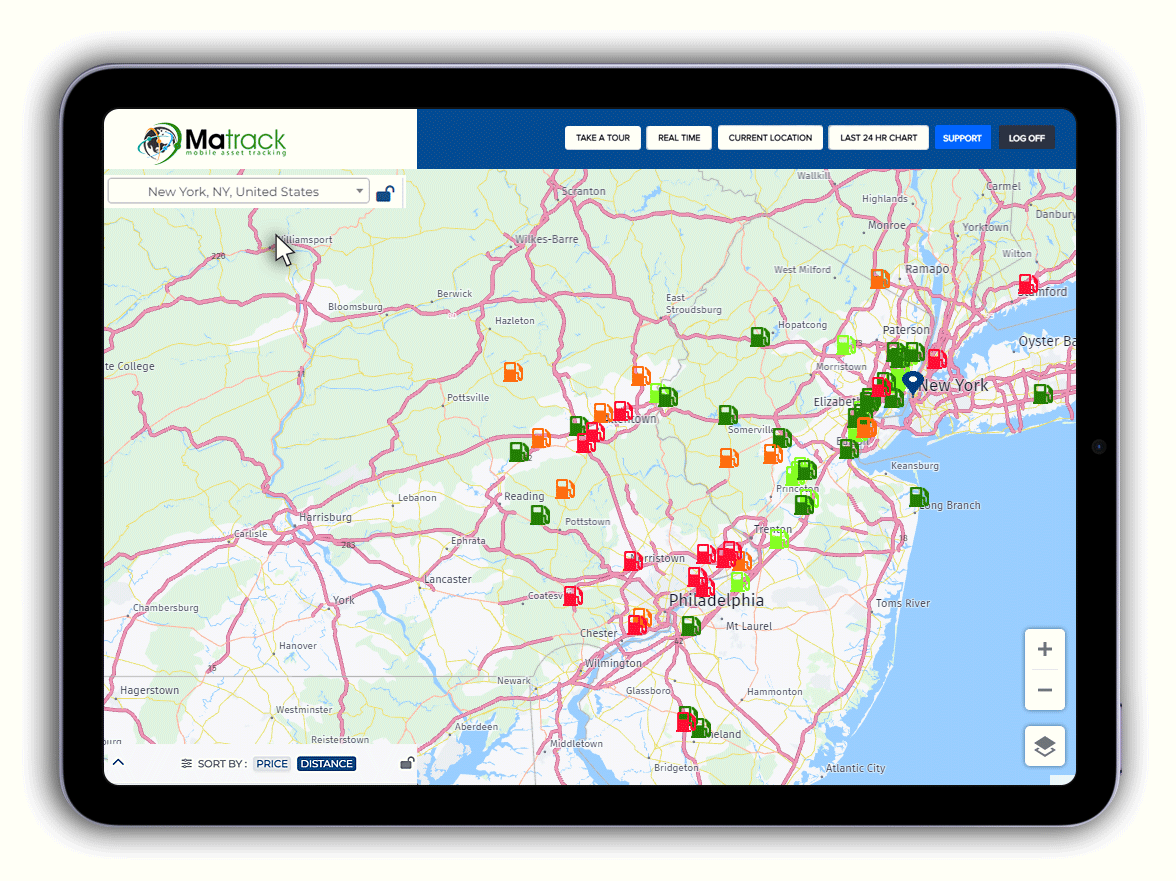

Our hardware provides warning notifications, when fuel levels drop below the set threshold percentage. The Matrack ELD system provides violation details for current cycles as well as graph illustrations for break times, driver availability, remaining shift hours and remaining cycle hours for each shift.

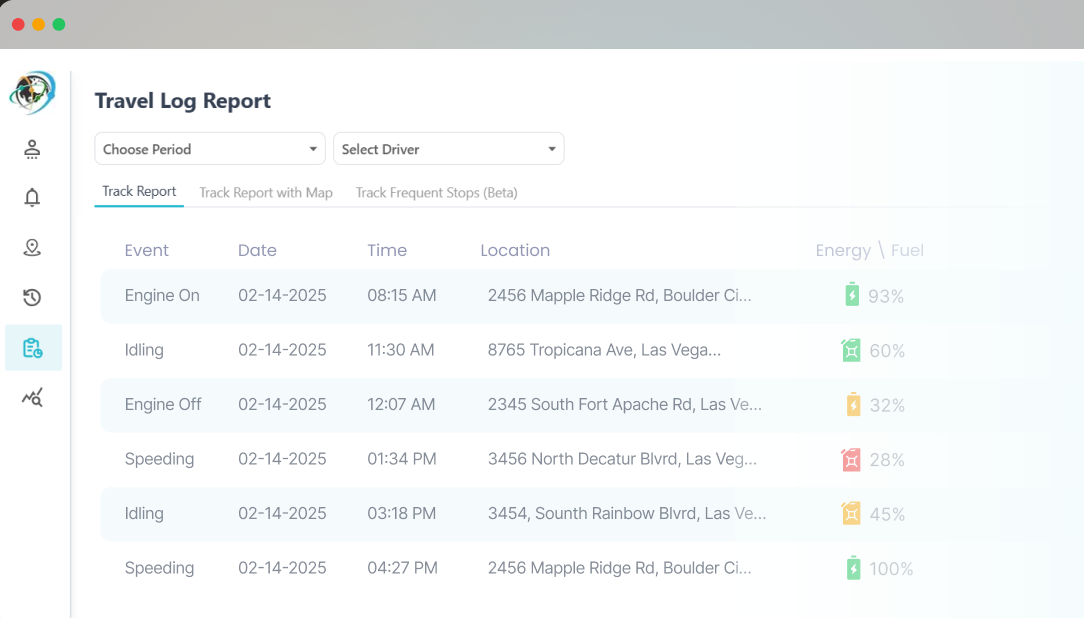

Reporting & Alerts
  • Fuel efficiency & vehicle health
  • Activity and driver behavior
  • IFTA, EL, and FSMA

Create accident reports. Includes incident images. Submit to fleet administrators. Fuel efficiency & vehicle health. Activity and driver behavior. IFTA, EL, and FSMA. Our software can be configured to automatically deliver any report you want any time you want. You don’t even have to have a login. With a quick glance at our dashboard you can easily view and monitor KPI’s like mileage, stop time, idle time, and speeding. This helps you recognize and correct behavior to become more cost efficient and increase productivity. Take advantage of GPS tracking’s benefits. GPS receiver has the capability of monitoring speed of a vehicle and detects accident based on monitored speed and send accident location to the server. The GPS will monitor sudden drastic change in speed of the vehicle and send the location details to the server by utilizing the cellular network. This will help to reach the rescue service in time and save the valuable human life.

Empower Your Fleet.
Get Real Results.

Manage Your Fleet with Fewer Resources. Maximize output by organizing, scheduling, appointing jobs and deliveries to your drivers with our integrated Dispatch Platform. In a field-based delivery operation, when your drivers are beyond anyone ability to see, you truly need to recognize what is happening. Integrate fleet maintenance software with your asset management systems to track and analyze increasingly complex driver and vehicle data.

Get The Best GPS Fleet Tracking Device Now

90%
Reduction in Accidents
23%
Increase in Efficiency
47%
Reduction in insurance premiums
“VERY SATISFIED, GOOD AND RELIABLE UNIT. YOU COULD ADD KILLING SWITCH ON/OFF ON THE NEWER MODELS.”

JEAN D

“multiple devices for various applications. easy install. inexpensive.”

Charlie W.

“Software is pretty easy to use. There are a few minor changes I’d make if I were the engineer but gets the job done.”

D Wayne P.

“Matrack has set themselves apart from the other players in GPS tracking by having superior customer service.”

Rick R.

“Very easy to use and maintain for daily activity reports.”

Art K.

“Keeping track of my equipment.”

Owen R.

“Very Satisfied. Easy to use and easy to explain to my clients”

daniel g.

“LOVE THE PRODUCT,NEVER HAVE NO PROBLEM. ITS EASY TO USED, EASY TO NAVIGATE, LOVE IT”

ALEJANDRO V.

“Great product. Easy to use … i really like the product and no issues.”

Neil N.

“Good product with excellent technical support.”

Percy C.

“Very effective and easy to work with. works better for me. And very effective”

Sam J.

“Everything have been great, software is easy to use and customer service has been there to solve any issues I have had.”

ronnie E.

“I really like the importance of providing a great service to my clients and this product help do that.”

Leonard A.

“Simple to set up easy to navigate on phones. I like this product sooooo much i put a life time warranty on all i sell.”

David c.

“I like the fact that I can know where the vehicles are of my workers for their safety for surveillance investigation.”

Cynthia S.

“Matrack is great!. Very easy to use. Super awesome and easy.”

Junior A.

“Good Unit. Easy to use. software is good. different options for notification.”

Blake F.

“Easy to install. The phone application was thorough and self-explanatory.”

Adelaide S.
